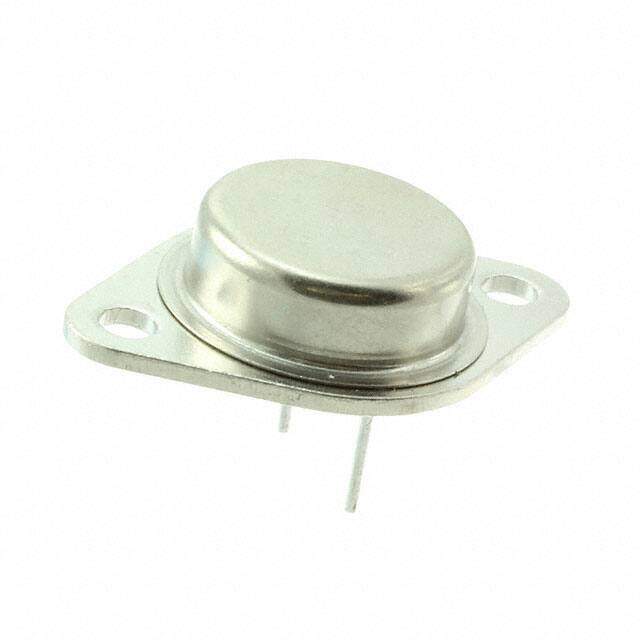

LM117K STEEL
RoHS
/
Package TO-204AA, TO-3
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description
LM117 Tray Through Hole Over Current Over Temperature Short Circuit voltage regulator linear 40V 1.5A -55C~125C
PDF
/
Buying Options
Total Price: USD $101.78
Unit Price: USD $101.777269
≥1 USD $101.777269
≥10 USD $96.016288
≥100 USD $90.581404
≥500 USD $85.454154
≥1000 USD $80.617128
Inventory: 1171
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status Non-RoHS Compliant
Technical
Input-Output Voltage Differential-Min 3V
Input-Output Voltage Differential-Max 40V
Voltage - Output (Max) 37V
PSRR 80dB ~ 65dB (120Hz)
Protection Features Over Current, Over Temperature, Short Circuit
Number of Regulators 1
Voltage - Output (Min/Fixed) 1.25V
Current - Output 1.5A
Output Configuration Positive
Output Type Adjustable
Voltage - Input (Max) 40V
Qualification Status Not Qualified
JESD-30 Code O-MBFM-P2
Pin Count 2
Base Part Number LM117
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form PIN/PEG
Terminal Position BOTTOM
Technology BIPOLAR
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Packaging Tray
Operating Temperature -55°C~125°C
Physical
Surface Mount NO
Package / Case TO-204AA, TO-3
Mounting Type Through Hole
Supply Chain
Factory Lead Time 6 Weeks
Alternative Model
