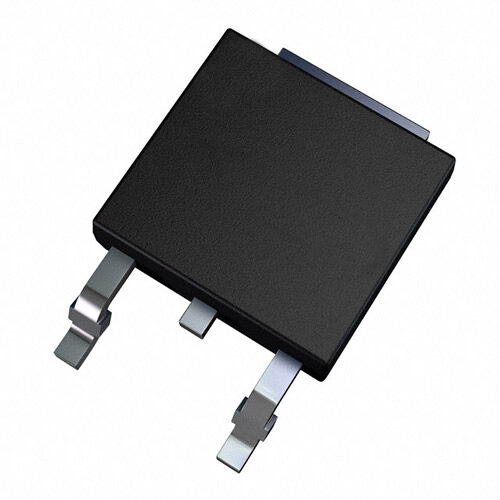

LM1117DT-2.5
RoHS
/
Package TO-252
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description
TO-252 Surface Mount RoHS Compliant Tin/Lead (Sn/Pb) voltage regulator linear 1.2V 6.58mm 800mA 125C
PDF
/
Buying Options
Total Price: USD $0.49
Unit Price: USD $0.4928
≥1 USD $0.4928
Inventory: 1445
Minimum: 1
-
+
Technical Details
Physical
Mount Surface Mount
Package / Case TO-252
Number of Pins 3
Technical
JESD-609 Code e0
Pbfree Code no
Moisture Sensitivity Level (MSL) 1
Number of Terminations 2
ECCN Code EAR99
Terminal Finish Tin/Lead (Sn/Pb)
Max Operating Temperature 125°C
Min Operating Temperature 0°C
Subcategory Other Regulators
Packing Method RAIL
Technology BIPOLAR
Terminal Position SINGLE
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 235
Number of Functions 1
Terminal Pitch 2.28mm
Current Rating 800A
Pin Count 4
JESD-30 Code R-PSSO-G2
Number of Outputs 1
Output Type Fixed
Max Output Current 800mA
Polarity Positive
Current - Output 800mA
Quiescent Current 5mA
Accuracy 1 %
Voltage - Output 2.5V
Output Voltage 1 2.5V
Max Input Voltage 15V
Dropout Voltage 1.2V
Dropout Voltage1-Nom 1.2V
Voltage Tolerance-Max 2%
Input Voltage Absolute-Max 20V
Line Regulation-Max (%/V) 0.006%
Dimensions
Length 6.58mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
