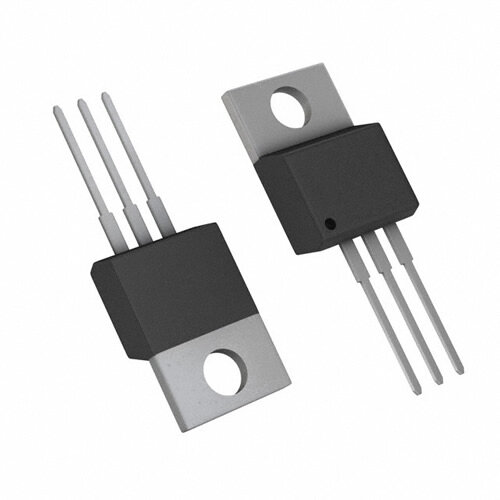

LM1086IT-5.0
RoHS
/
Package TO-220
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description
TO-220 Through Hole RoHS Compliant Tin/Lead (Sn/Pb) voltage regulator linear 1.3V 2.54mm 1.5A 125C
PDF
/
Buying Options
Total Price: USD $0.76
Unit Price: USD $0.76285
≥1 USD $0.76285
≥10 USD $0.62605
≥100 USD $0.6061
≥500 USD $0.58615
≥1000 USD $0.56715
Inventory: 1077
Minimum: 1
-
+
Technical Details
Physical
Mount Through Hole
Package / Case TO-220
Number of Pins 3
Technical
JESD-609 Code e0
Pbfree Code no
Moisture Sensitivity Level (MSL) 1
Number of Terminations 3
ECCN Code EAR99
Terminal Finish Tin/Lead (Sn/Pb)
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Subcategory Other Regulators
Packing Method RAIL
Technology BIPOLAR
Terminal Position SINGLE
Number of Functions 1
Terminal Pitch 2.54mm
Pin Count 3
Number of Outputs 1
Output Type Fixed
Max Output Current 1.5A
Polarity Positive
Current - Output 1.5A
Quiescent Current 2mA
Voltage - Output 5V
Output Voltage 1 5V
Min Input Voltage 2.6V
Max Input Voltage 30V
Dropout Voltage 1.3V
Dropout Voltage1-Nom 1.3V
Voltage Tolerance-Max 2%
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
Lead Free Contains Lead
