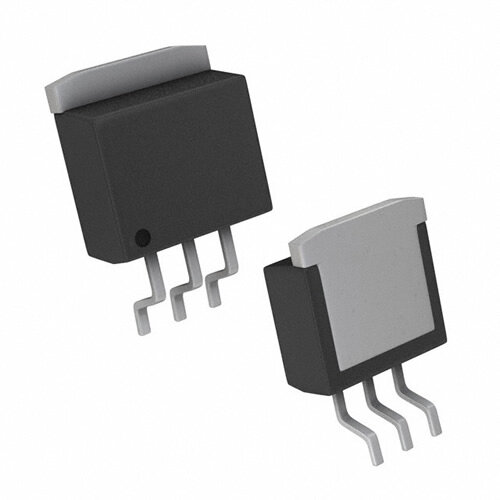

LM1085IS-12 image
Favorite
LM1085IS-12 image
Favorite

LM1085IS-12

Texas Instruments
RoHS
/
Package TO-263
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description TO-263 Surface Mount RoHS Compliant Tin/Lead (Sn/Pb) voltage regulator linear 1.3V 4.79mm 3A 125C
PDF
/
Buying Options
Total Price: USD $1.01
Unit Price: USD $1.012
≥1 USD $1.012
Inventory: 1127
Minimum: 1
-
+

Technical Details

Physical

Mount Surface Mount
Package / Case TO-263
Number of Pins 3

Technical

JESD-609 Code e0
Pbfree Code no
Moisture Sensitivity Level (MSL) 3
Number of Terminations 3
ECCN Code EAR99
Terminal Finish Tin/Lead (Sn/Pb)
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Subcategory Other Regulators
Packing Method RAIL
Technology BIPOLAR
Terminal Position SINGLE
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 235
Number of Functions 1
Terminal Pitch 2.54mm
Pin Count 4
Number of Outputs 1
Output Type Fixed
Max Output Current 3A
Polarity Positive
Current - Output 3A
Quiescent Current 5mA
Voltage - Output 12V
Output Voltage 1 12V
Min Input Voltage 2.6V
Max Input Voltage 18V
Dropout Voltage 1.3V
Dropout Voltage1-Nom 1.3V
Voltage Tolerance-Max 2%
Load Regulation-Max(%) 0.072%
Line Regulation-Max (%/V) 0.025%

Dimensions

Height Seated (Max) 4.79mm
Width 8.64mm

Compliance

Radiation Hardening No
RoHS Status RoHS Compliant
Lead Free Lead Free
