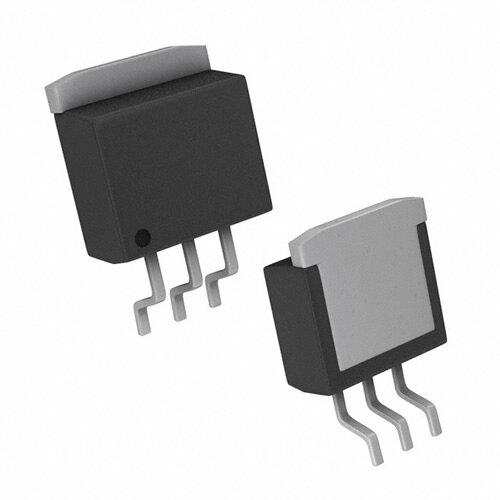

LM1084ISX-5.0
RoHS
/
Package TO-263
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description
Lead Free Positive GULL WING BIPOLAR voltage regulator linear 125C 30W 5A 4.8mm
PDF
/
Buying Options
Total Price: USD $4.56
Unit Price: USD $4.56475
≥1 USD $4.56475
≥10 USD $3.7449
≥100 USD $3.62805
≥500 USD $3.5112
≥1000 USD $3.39435
Inventory: 1518
Minimum: 1
-
+
Technical Details
Physical
Mount Surface Mount
Package / Case TO-263
Number of Pins 3
Technical
Packaging Tape & Reel
JESD-609 Code e0
Pbfree Code no
Moisture Sensitivity Level (MSL) 3
Number of Terminations 3
ECCN Code EAR99
Terminal Finish Tin/Lead (Sn/Pb)
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Subcategory Other Regulators
Packing Method TAPE AND REEL
Technology BIPOLAR
Terminal Position SINGLE
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 235
Number of Functions 1
Terminal Pitch 2.54mm
Pin Count 4
Number of Outputs 1
Output Type Fixed
Max Output Current 5A
Polarity Positive
Power Dissipation-Max 30W
Current - Output 5A
Quiescent Current 10mA
Voltage - Output 5V
Output Voltage 1 5V
Min Input Voltage 2.6V
Max Input Voltage 25V
Dropout Voltage 1.5V
Dropout Voltage1-Nom 1.3V
Voltage Tolerance-Max 2%
Dimensions
Height Seated (Max) 4.8mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
Lead Free Lead Free
