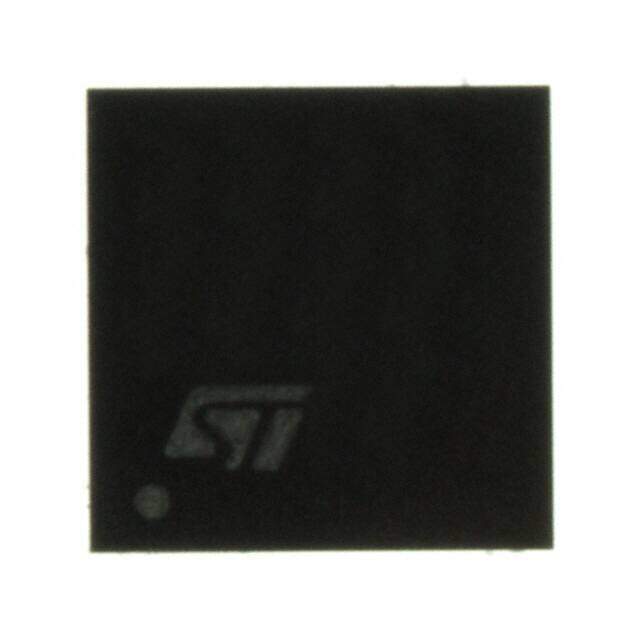

PM6681ATR
RoHS
RoHS compliant
RoHS compliantPackage 32-VFQFN Exposed Pad
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear + Switching
Description
IC REG QD BUCK/LINEAR 32-VFQFPN
PDF
/
Buying Options
Total Price: USD $2.43
Unit Price: USD $2.430829
≥1 USD $2.430829
≥10 USD $2.29324
≥100 USD $2.163432
≥500 USD $2.04097
≥1000 USD $1.925447
Inventory: 1483
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 38 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 32-VFQFN Exposed Pad
Number of Pins 32
Technical
Operating Temperature -40°C~85°C
Packaging Tape & Reel (TR)
JESD-609 Code e3
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 32
ECCN Code EAR99
Terminal Finish Matte Tin (Sn) - annealed
Subcategory Switching Regulator or Controllers
Voltage - Supply 4.5V~36V
Terminal Position QUAD
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Terminal Pitch 0.5mm
Base Part Number PM6681
Pin Count 32
Number of Outputs 4
Output Voltage 3.3V
Max Output Current 100mA
Voltage - Output 1 5V
Operating Supply Voltage 5.5V
Input Voltage-Nom 24V
Analog IC - Other Type DUAL SWITCHING CONTROLLER
Output Current 10A
Voltage - Output 2 3.3V
Input Voltage (Min) 6V
Topology Step-Down (Buck) (2), Linear (LDO) (2)
Control Mode VOLTAGE-MODE
Frequency - Switching Down to 33kHz
Input Voltage (Max) 36V
Control Technique PULSE WIDTH MODULATION
Current - Output 1 100mA
Voltage - Output 3 5V
Switcher Configuration PUSH-PULL
Current - Output 2 100mA
w/Sequencer No
Voltage/Current - Output 1 0.9V~5V 100mA
Current - Output 3 100mA
Voltage/Current - Output 2 0.9V~3.3V 100mA
Voltage/Current - Output 3 5V 100mA
Dimensions
Height Seated (Max) 1mm
Length 5mm
Width 5mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
