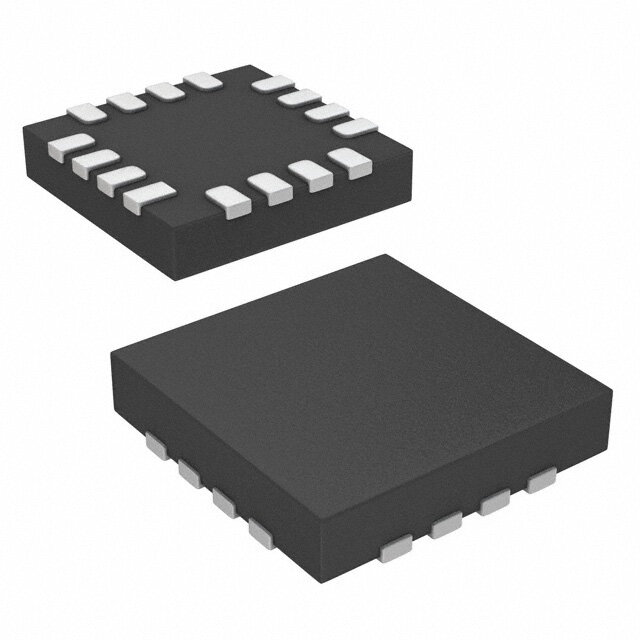

MIC2800-G7SYML-TR
RoHS
RoHS compliant
RoHS compliantPackage 16-VFQFN
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear + Switching
Description
IC REG TRPL BUCK/LNR 2MHZ 16QFN
PDF
/
Inventory: 9976
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 16-VFQFN
Number of Pins 16
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 16
Terminal Finish Matte Tin (Sn)
Technology CMOS
Voltage - Supply 2.7V~5.5V
Terminal Position QUAD
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Terminal Pitch 0.5mm
Time@Peak Reflow Temperature-Max (s) 30
Base Part Number MIC2800
Number of Outputs 3
Voltage - Output 1 1.8V
Number of Channels 3
Analog IC - Other Type POWER SUPPLY SUPPORT CIRCUIT
Adjustable Threshold NO
Voltage - Output 2 1.58V
Topology Step-Down (Buck) (1), Linear (LDO) (2)
Frequency - Switching 2MHz
Voltage - Output 3 3.3V
w/Sequencer No
Voltage/Current - Output 1 1.8V 600mA
Voltage/Current - Output 2 1.58V 300mA
Voltage/Current - Output 3 3.3V 300mA
Dimensions
Height Seated (Max) 0.9mm
Compliance
RoHS Status ROHS3 Compliant
