STLQ020PUR
RoHS
/

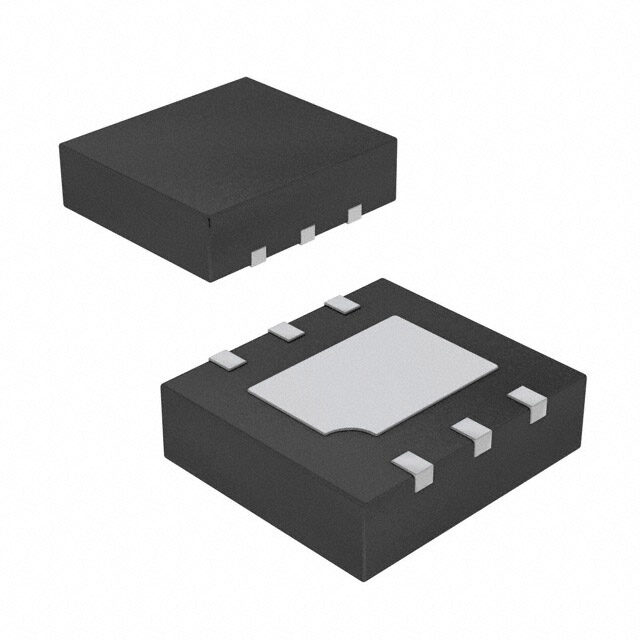

Package 6-VFDFN Exposed Pad
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description
STLQ020 Tape & Reel (TR) Surface Mount Over Current Over Temperature voltage regulator linear 0.8V 2mm 200mA -40C~125C TJ
PDF
/
Buying Options
Total Price: USD $0.6
Unit Price: USD $0.5984
≥1 USD $0.5984
≥10 USD $0.52448
≥100 USD $0.4928
≥500 USD $0.402248
≥1000 USD $0.373648
≥3000 USD $0.318014
Inventory: 1446
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status Non-RoHS Compliant
Dimensions
Width 2mm
Length 2mm
Height Seated (Max) 0.95mm
Technical
Voltage - Output (Max) 4.5V
Output Voltage1-Min 0.8V
PSRR 60dB ~ 40dB (100Hz ~ 10kHz)
Voltage Dropout (Max) 0.2V @ 200mA
Current - Quiescent (Iq) 1μA
Protection Features Over Current, Over Temperature
Number of Regulators 1
Voltage - Output (Min/Fixed) 0.8V
Control Features Enable
Current - Output 200mA
Output Configuration Positive
Output Type Adjustable
Voltage - Input (Max) 5.5V
Current - Supply (Max) 150μA
JESD-30 Code S-PDSO-N6
Base Part Number STLQ020
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Terminal Pitch 0.5mm
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form NO LEAD
Terminal Position DUAL
Number of Terminations 6
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C TJ
Physical
Surface Mount YES
Package / Case 6-VFDFN Exposed Pad
Mounting Type Surface Mount
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 7 months ago)
Factory Lead Time 12 Weeks
