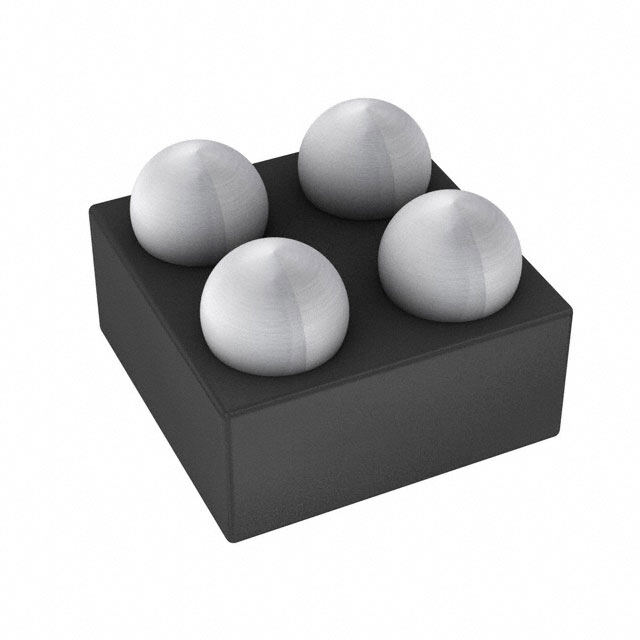

STLQ020J30R image
Favorite
STLQ020J30R image
Favorite

STLQ020J30R

STMicroelectronics
RoHS
RoHS RoHS compliant
Package 4-UFBGA, FCBGA
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description STLQ020 Tape & Reel (TR) Surface Mount Over Current Over Temperature voltage regulator linear 3.09V 0.773mm 200mA -40C~125C TJ
PDF
/
Buying Options
Total Price: USD $0.56
Unit Price: USD $0.5632
≥1 USD $0.5632
≥10 USD $0.49544
≥100 USD $0.465696
≥500 USD $0.379984
≥1000 USD $0.352986
≥3000 USD $0.300414
Inventory: 1463
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 24 Weeks

Physical

Mounting Type Surface Mount
Package / Case 4-UFBGA, FCBGA
Surface Mount YES

Technical

Operating Temperature -40°C~125°C TJ
Packaging Tape & Reel (TR)
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 4
Terminal Position BOTTOM
Terminal Form BALL
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Terminal Pitch 0.4mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Base Part Number STLQ020
JESD-30 Code S-PBGA-B4
Current - Supply (Max) 150μA
Voltage - Input (Max) 5.5V
Output Type Fixed
Output Configuration Positive
Current - Output 200mA
Control Features Enable
Output Voltage 1 3V
Input Voltage (Min) 3.5V
Voltage - Output (Min/Fixed) 3V
Number of Regulators 1
Protection Features Over Current, Over Temperature
Current - Quiescent (Iq) 1μA
Voltage Dropout (Max) 0.16V @ 200mA
PSRR 52dB ~ 45dB (100Hz ~ 10kHz)
Output Voltage1-Max 3.09V

Dimensions

Length 0.773mm
Width 0.773mm

Compliance

RoHS Status ROHS3 Compliant
