ST2L01K5
RoHS
RoHS compliant
RoHS compliantPackage SPak-5 (5 leads + Tab)
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description

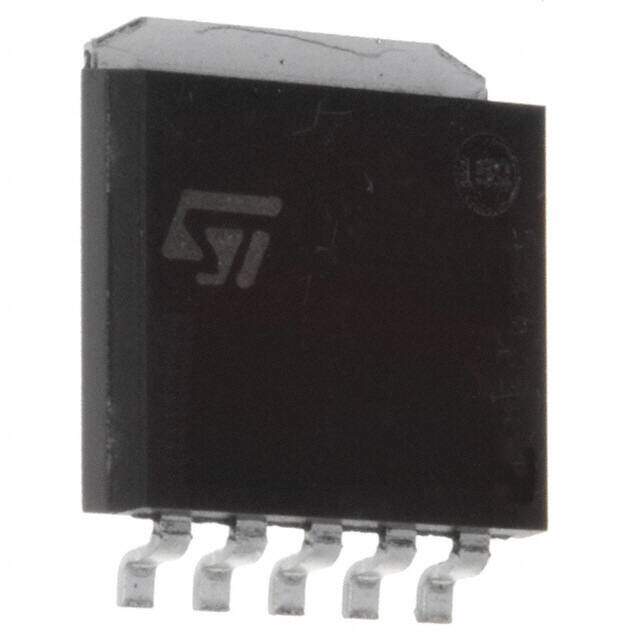

FIXED/ADJUSTABLE ST2L01 Tube Surface Mount voltage regulator linear 1.1V 1.69mm 1A 0C~125C
PDF
/
Inventory: 6485
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Width 8mm
Technical
Load Regulation-Max(%) 0.4%
Adjustability FIXED/ADJUSTABLE
Input Voltage Absolute-Max 10V
Min Current Limit 1A
Voltage Tolerance-Max 3%
Dropout Voltage1-Nom 1.1V
Dropout Voltage 1.1V
Reference Voltage 1.275V
PSRR 70db ~ 38dB (1kHz ~ 100kHz), 80dB (43dB (1kHz ~ 100kHz)
Voltage Dropout (Max) 1.3V @ 1A 1.3V @ 1A
Protection Features Over Current, Over Temperature
Min Input Voltage 4.75V
Number of Regulators 2
Voltage - Output (Min/Fixed) 1.25V 3.3V
Output Voltage 1 3.3V
Accuracy 2 %
Current - Output 1A 1A
Output Configuration Positive
Max Output Current 1A
Output Type Adjustable (Fixed)
Output Voltage 3V
Voltage - Input (Max) 5.25V
Number of Outputs 2
Pin Count 5
Base Part Number ST2L01
Terminal Pitch 1.69mm
Number of Functions 1
Terminal Form GULL WING
Terminal Position SINGLE
Subcategory Other Regulators
Terminal Finish TIN LEAD
ECCN Code EAR99
Number of Terminations 5
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
JESD-609 Code e0
Packaging Tube
Operating Temperature 0°C~125°C
Physical
Number of Pins 5
Package / Case SPak-5 (5 leads + Tab)
Mounting Type Surface Mount
Mount Surface Mount
Alternative Model
