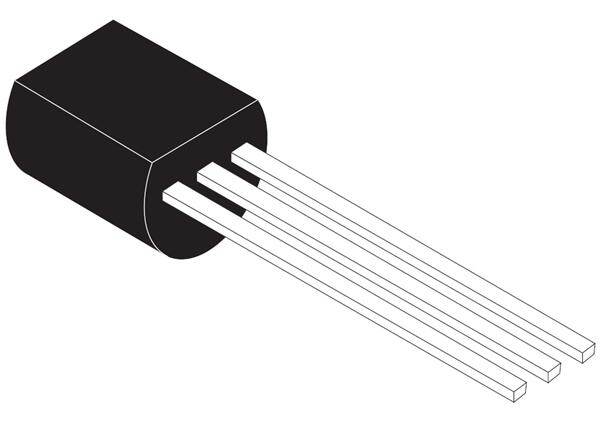

LE120CZ image
Favorite
LE120CZ image
Favorite
RoHS
/
Package TO-92
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description Positive BIPOLAR EAR99 Fixed voltage regulator linear 125C 100mA 500mV
PDF
/
Inventory: 6366
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Physical

Mount Through Hole
Package / Case TO-92

Technical

Packaging Bulk
JESD-609 Code e0
Number of Terminations 3
ECCN Code EAR99
Terminal Finish Tin/Lead (Sn/Pb)
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Subcategory Other Regulators
Technology BIPOLAR
Terminal Position BOTTOM
Number of Functions 1
Pin Count 3
JESD-30 Code O-PBCY-T3
Number of Outputs 1
Output Type Fixed
Max Output Current 100mA
Polarity Positive
Current - Output 100mA
Quiescent Current 3.6mA
Accuracy 2 %
Voltage - Output 12V
Output Voltage 1 12V
Current - Input Bias 1.7mA
Max Input Voltage 18V
Dropout Voltage 500mV
Dropout Voltage1-Nom 0.2V
Voltage Tolerance-Max 4%
Input Voltage Absolute-Max 20V
Load Regulation-Max(%) 0.025%
Line Regulation-Max (%/V) 0.035%

Compliance

Radiation Hardening No
RoHS Status Non-RoHS Compliant
