LDLN025PU32R
RoHS
RoHS compliant

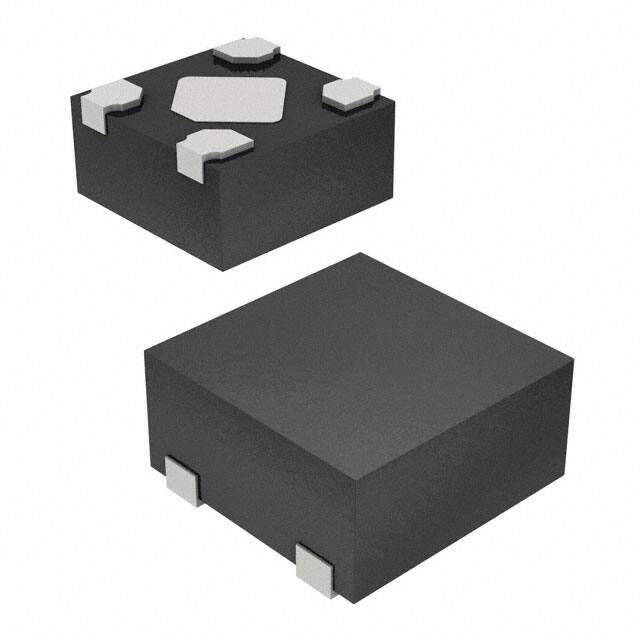

RoHS compliantPackage 4-XDFN Exposed Pad
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description
LDLN025 Tape & Reel (TR) Surface Mount Over Current Over Temperature Short Circuit Soft Start voltage regulator linear 3.264V 0.4mm 250mA -40C~125C TJ
PDF
/
Buying Options
Total Price: USD $0.52
Unit Price: USD $0.5192
≥1 USD $0.5192
≥10 USD $0.44352
≥100 USD $0.413952
≥500 USD $0.331232
≥1000 USD $0.307578
≥3000 USD $0.260251
Inventory: 1851
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.4mm
Technical
Output Voltage1-Max 3.264V
PSRR 80dB ~ 60dB (100Hz ~ 100KHz)
Voltage Dropout (Max) 0.25V @ 250mA
Current - Quiescent (Iq) 25μA
Protection Features Over Current, Over Temperature, Short Circuit, Soft Start
Number of Regulators 1
Voltage - Output (Min/Fixed) 3.2V
Input Voltage (Min) 4.2V
Output Voltage 1 3.2V
Control Features Enable
Current - Output 250mA
Output Configuration Positive
Output Type Fixed
Voltage - Input (Max) 5.5V
Current - Supply (Max) 425μA
JESD-30 Code S-PDSO-N4
Base Part Number LDLN025
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Terminal Pitch 0.65mm
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form NO LEAD
Terminal Position DUAL
Number of Terminations 4
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C TJ
Physical
Surface Mount YES
Package / Case 4-XDFN Exposed Pad
Mounting Type Surface Mount
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 7 months ago)
Factory Lead Time 20 Weeks
