LDLN025J32R
RoHS
RoHS compliant

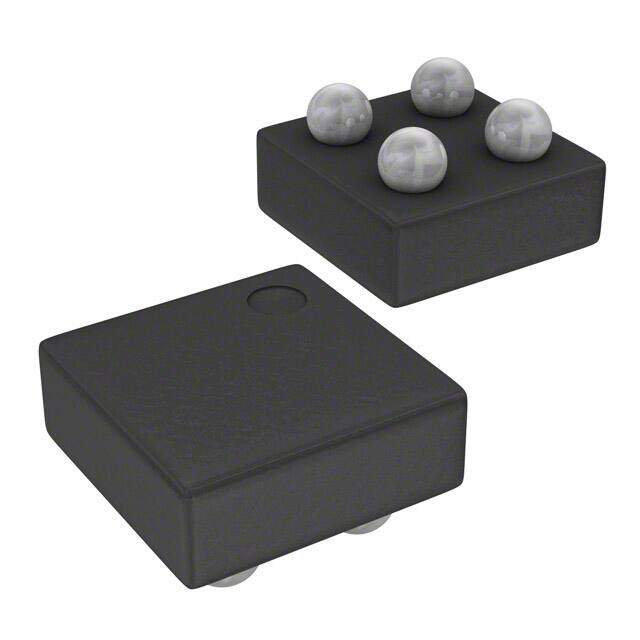

RoHS compliantPackage 4-XFBGA, FCBGA
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description
LDLN025 Tape & Reel (TR) Surface Mount Over Current Over Temperature Short Circuit Soft Start voltage regulator linear 3.264V 0.628mm 250mA -40C~125C TJ
PDF
/
Buying Options
Total Price: USD $0.5
Unit Price: USD $0.5016
≥1 USD $0.5016
≥10 USD $0.44
≥100 USD $0.413248
≥500 USD $0.337304
≥1000 USD $0.313315
≥3000 USD $0.26664
Inventory: 1405
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 0.628mm
Length 0.628mm
Height Seated (Max) 0.445mm
Technical
Output Voltage1-Max 3.264V
PSRR 80dB ~ 60dB (100Hz ~ 100KHz)
Voltage Dropout (Max) 0.2V @ 250mA
Current - Quiescent (Iq) 25μA
Protection Features Over Current, Over Temperature, Short Circuit, Soft Start
Number of Regulators 1
Voltage - Output (Min/Fixed) 3.2V
Input Voltage (Min) 4.2V
Output Voltage 1 3.2V
Control Features Enable
Current - Output 250mA
Output Configuration Positive
Output Type Fixed
Voltage - Input (Max) 5.5V
Current - Supply (Max) 425μA
JESD-30 Code S-PBGA-B4
Base Part Number LDLN025
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Terminal Pitch 0.35mm
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form BALL
Terminal Position BOTTOM
Number of Terminations 4
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C TJ
Physical
Surface Mount YES
Package / Case 4-XFBGA, FCBGA
Mounting Type Surface Mount
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 7 months ago)
Factory Lead Time 24 Weeks
