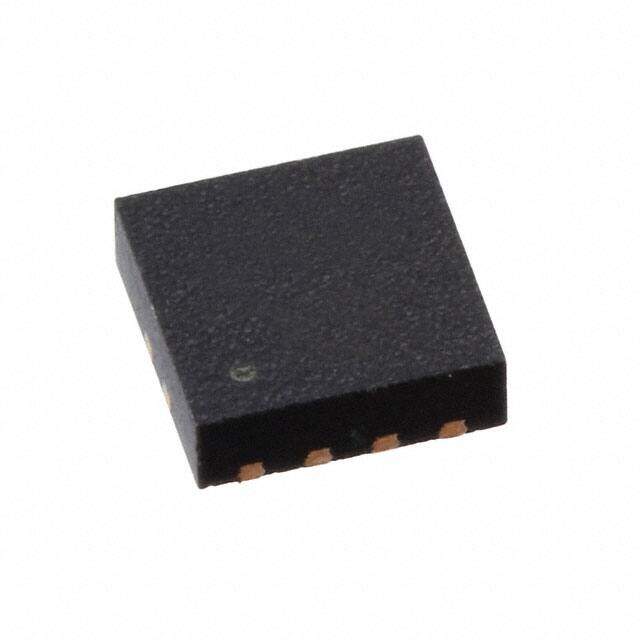

LDK715PU42R
RoHS
RoHS compliant
RoHS compliantPackage 8-VDFN Exposed Pad
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description
LDK715 Tape & Reel (TR) Surface Mount Over Current Over Temperature voltage regulator linear 4.284V 3mm 85mA -40C~125C TJ
PDF
/
Buying Options
Total Price: USD $0.8
Unit Price: USD $0.8008
≥1 USD $0.8008
≥10 USD $0.7084
≥100 USD $0.66528
≥500 USD $0.542784
≥1000 USD $0.504205
≥3000 USD $0.429106
Inventory: 1367
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 3mm
Length 3mm
Technical
Output Voltage1-Max 4.284V
PSRR 57dB ~ 38dB (100kHz ~ 1kHz)
Voltage Dropout (Max) 1V @ 85mA
Current - Quiescent (Iq) 7μA
Protection Features Over Current, Over Temperature
Number of Regulators 1
Voltage - Output (Min/Fixed) 4.2V
Input Voltage (Min) 4.3V
Output Voltage 1 4.2V
Current - Output 85mA
Output Configuration Positive
Output Type Fixed
Voltage - Input (Max) 24V
Current - Supply (Max) 8.5μA
JESD-30 Code S-PDSO-N8
Base Part Number LDK715
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Terminal Pitch 0.65mm
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form NO LEAD
Terminal Position DUAL
ECCN Code EAR99
Number of Terminations 8
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C TJ
Physical
Surface Mount YES
Package / Case 8-VDFN Exposed Pad
Mounting Type Surface Mount
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 7 months ago)
Factory Lead Time 12 Weeks
