LDK120PU08R
RoHS
RoHS compliant

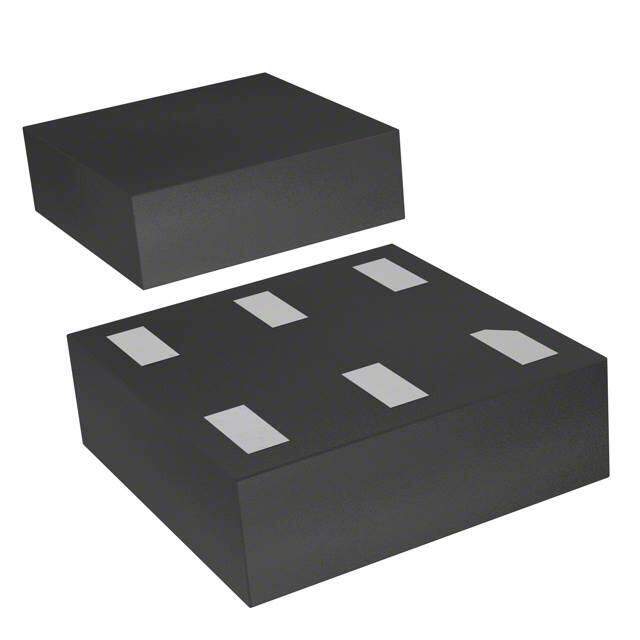

RoHS compliantPackage 6-XFDFN
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description
LDK120 Tape & Reel (TR) Surface Mount Over Current Over Temperature voltage regulator linear 100mV 450mum 200mA -40C~125C
PDF
/
Buying Options
Total Price: USD $0.72
Unit Price: USD $0.7216
≥1 USD $0.7216
≥10 USD $0.63712
≥100 USD $0.598752
≥500 USD $0.488664
≥1000 USD $0.453869
≥3000 USD $0.386267
Inventory: 1349
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Lifecycle Status ACTIVE (Last Updated: 7 months ago)
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 6-XFDFN
Number of Pins 6
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 6
ECCN Code EAR99
Subcategory Other Regulators
Packing Method TAPE AND REEL
Technology CMOS
Terminal Position DUAL
Number of Functions 1
Terminal Pitch 0.4mm
Base Part Number LDK120
Current - Supply (Max) 100μA
Number of Outputs 1
Voltage - Input (Max) 5.5V
Output Voltage 800mV
Output Type Fixed
Max Output Current 200mA
Operating Supply Current 50μA
Output Configuration Positive
Quiescent Current 60μA
Control Features Enable
Accuracy 2 %
Output Voltage 1 0.8V
Voltage - Output (Min/Fixed) 0.8V
Number of Regulators 1
Min Input Voltage 1.9V
Protection Features Over Current, Over Temperature
Voltage Dropout (Max) 0.3V @ 200mA
PSRR 55dB (120Hz ~ 10kHz)
Dropout Voltage 100mV
Dropout Voltage1-Nom 1V
Power Supply Rejection Ratio (PSRR) 55dB
Voltage Tolerance-Max 3%
Nominal Output Voltage 800mV
Dimensions
Height 450μm
Length 1.3mm
Width 1.2mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
Alternative Model
