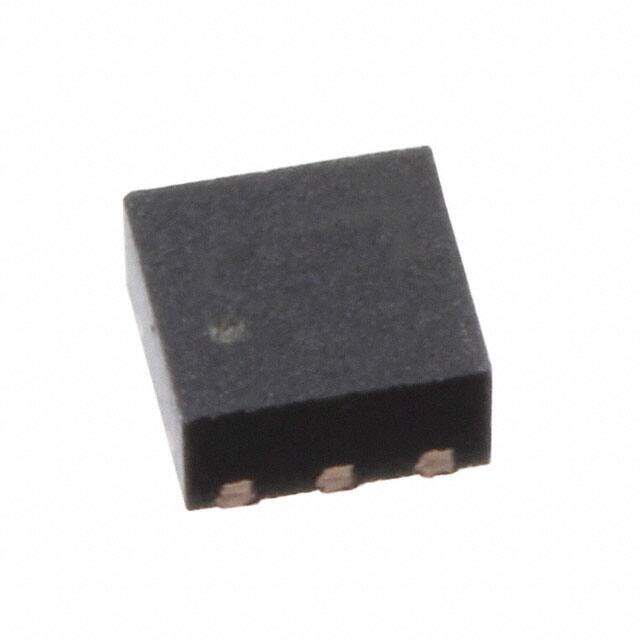

LDFM33PVR image
Favorite
LDFM33PVR image
Favorite
RoHS
RoHS RoHS compliant
Package 6-VDFN Exposed Pad
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description LDFM33 Tape & Reel (TR) Surface Mount Over Current Over Temperature Under Voltage Lockout (UVLO) voltage regulator linear 125mV 2mm 500mA -40C~125C TJ
PDF
/
Buying Options
Total Price: USD $0.82
Unit Price: USD $0.8184
≥1 USD $0.8184
≥10 USD $0.71896
≥100 USD $0.675488
≥500 USD $0.551408
≥1000 USD $0.51216
≥3000 USD $0.435864
Inventory: 1386
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 12 Weeks
Lifecycle Status ACTIVE (Last Updated: 7 months ago)

Physical

Mounting Type Surface Mount
Package / Case 6-VDFN Exposed Pad
Surface Mount YES

Technical

Operating Temperature -40°C~125°C TJ
Packaging Tape & Reel (TR)
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 6
Terminal Position DUAL
Terminal Form NO LEAD
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Terminal Pitch 0.65mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Base Part Number LDFM33
JESD-30 Code S-PDSO-N6
Voltage - Input (Max) 16V
Output Voltage 3.3V
Output Type Fixed
Output Configuration Positive
Current - Output 500mA
Control Features Enable, Power Good
Output Voltage 1 3.3V
Input Voltage (Min) 2.5V
Number of Regulators 1
Protection Features Over Current, Over Temperature, Under Voltage Lockout (UVLO)
Current - Quiescent (Iq) 800μA
Voltage Dropout (Max) 0.3V @ 500mA
PSRR 60dB ~ 52dB (120Hz ~ 100kHz)
Dropout Voltage 125mV

Dimensions

Length 2mm
Width 2mm

Compliance

RoHS Status ROHS3 Compliant
