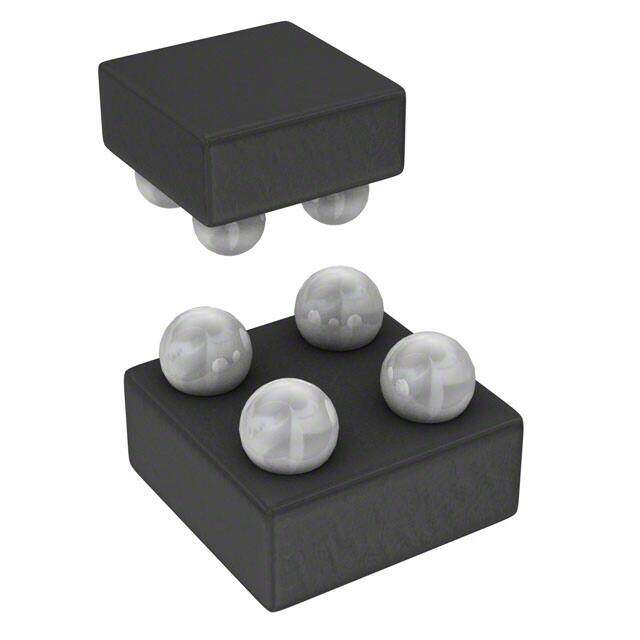

LD39115J25R
RoHS
RoHS compliant
RoHS compliantPackage 4-UFBGA, FCBGA
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description
LD39115 Tape & Reel (TR) Surface Mount Over Current Over Temperature voltage regulator linear 80mV 0.788mm 150mA -40C~125C
PDF
/
Buying Options
Total Price: USD $1.05
Unit Price: USD $1.0472
≥1 USD $1.0472
≥10 USD $0.93632
≥100 USD $0.888448
≥500 USD $0.729784
≥1000 USD $0.682211
≥3000 USD $0.60287
Inventory: 689
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 24 Weeks
Lifecycle Status ACTIVE (Last Updated: 7 months ago)
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 4-UFBGA, FCBGA
Number of Pins 4
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 4
ECCN Code EAR99
Subcategory Other Regulators
Packing Method TAPE AND REEL
Technology CMOS
Terminal Position BOTTOM
Terminal Form BALL
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Time@Peak Reflow Temperature-Max (s) 40
Base Part Number LD39115
Pin Count 4
Current - Supply (Max) 70μA
Number of Outputs 1
Qualification Status Not Qualified
Voltage - Input (Max) 5.5V
Output Voltage 2.5V
Output Type Fixed
Max Output Current 150mA
Output Configuration Positive
Quiescent Current 50μA
Control Features Enable
Accuracy 2 %
Output Voltage 1 2.5V
Number of Regulators 1
Min Input Voltage 1.5V
Protection Features Over Current, Over Temperature
Current - Quiescent (Iq) 50μA
Voltage Dropout (Max) 0.11V @ 100mA
PSRR 74dB ~ 67dB (1kHz ~ 10kHz)
Dropout Voltage 80mV
Dropout Voltage1-Nom 0.08V
Voltage Tolerance-Max 3%
Input Voltage Absolute-Max 6V
Dimensions
Height Seated (Max) 0.6mm
Length 0.788mm
Width 0.788mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
