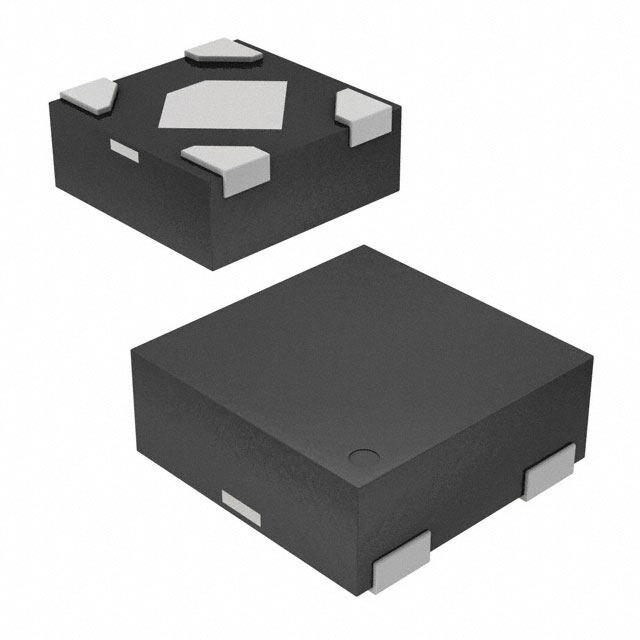

LD39020ATPU33R image
Favorite
LD39020ATPU33R image
Favorite

LD39020ATPU33R

STMicroelectronics
RoHS
RoHS RoHS compliant
Package 4-XDFN Exposed Pad
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description LD39020 Cut Tape (CT) Surface Mount Over Current Over Temperature Soft Start voltage regulator linear 4.3V 0.4mm 200mA -40C~125C TJ
PDF
/
Buying Options
Total Price: USD $0.45
Unit Price: USD $0.4488
≥1 USD $0.4488
≥10 USD $0.38104
≥100 USD $0.355872
≥500 USD $0.28468
≥1000 USD $0.264352
≥3000 USD $0.223696
Inventory: 9778
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant

Dimensions

Height Seated (Max) 0.4mm

Technical

PSRR 80dB ~ 55dB (1kHz ~ 100kHz)
Voltage Dropout (Max) 0.35V @ 200mA
Current - Quiescent (Iq) 40μA
Protection Features Over Current, Over Temperature, Soft Start
Number of Regulators 1
Input Voltage (Min) 4.3V
Output Voltage 1 3.3V
Control Features Enable
Current - Output 200mA
Output Configuration Positive
Output Type Fixed
Output Voltage 3.3V
Voltage - Input (Max) 5.5V
JESD-30 Code S-PDSO-N4
Base Part Number LD39020
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Terminal Pitch 0.65mm
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form NO LEAD
Terminal Position DUAL
ECCN Code EAR99
Number of Terminations 4
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Packaging Cut Tape (CT)
Operating Temperature -40°C~125°C TJ

Physical

Package / Case 4-XDFN Exposed Pad
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Lifecycle Status ACTIVE (Last Updated: 7 months ago)
Factory Lead Time 20 Weeks
