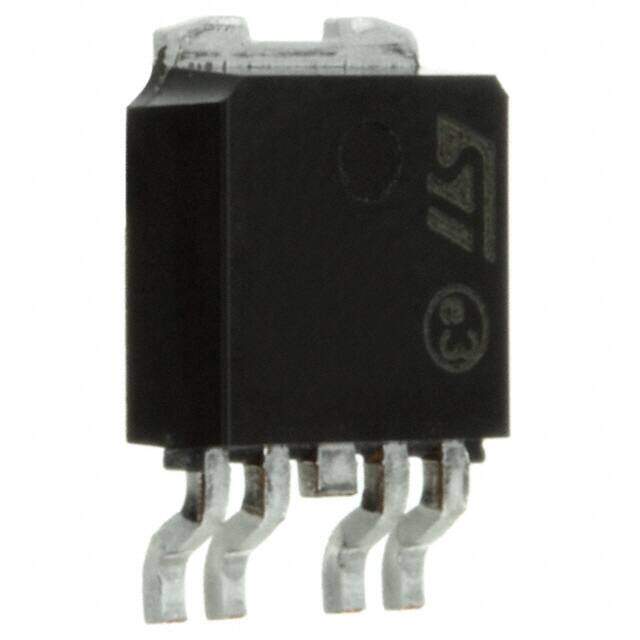

LD29080PTR
RoHS
RoHS compliant
RoHS compliantPackage TO-252-5, DPak (4 Leads + Tab), TO-252AD
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description
LD29080 Tape & Reel (TR) Surface Mount Over Current Over Temperature voltage regulator linear 700mV 2.4mm 800mA -40C~125C
PDF
/
Buying Options
Total Price: USD $1.46
Unit Price: USD $1.4608
≥1 USD $1.4608
≥10 USD $1.31032
≥100 USD $1.236224
≥500 USD $1.05336
≥1000 USD $0.98905
≥3000 USD $0.865427
Inventory: 223
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Width 6.2mm
Length 6.6mm
Height 2.4mm
Technical
Load Regulation-Max(%) 1%
Output Voltage Accuracy 1 %
Input Bias Current 2mA
Voltage - Output (Max) 12.3V
Min Output Voltage 1.5V
Dropout Voltage1-Nom 1.27V
Dropout Voltage 700mV
Reference Voltage 1.2607V
PSRR 75dB (120Hz)
Voltage Dropout (Max) 0.7V @ 800mA
Current - Quiescent (Iq) 180μA
Protection Features Over Current, Over Temperature
Min Input Voltage 2.5V
Number of Regulators 1
Voltage - Output (Min/Fixed) 1.23V
Accuracy 1 %
Control Features Enable
Quiescent Current 2mA
Output Configuration Positive
Max Output Current 800mA
Output Type Adjustable
Output Voltage 15V
Voltage - Input (Max) 13V
Number of Outputs 1
Current - Supply (Max) 35mA
JESD-30 Code R-PSSO-G4
Pin Count 4
Base Part Number LD29080
Time@Peak Reflow Temperature-Max (s) 30
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Form GULL WING
Terminal Position SINGLE
Technology BIPOLAR
Packing Method TAPE AND REEL
Subcategory Other Regulators
ECCN Code EAR99
Number of Terminations 4
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e3
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Physical
Number of Pins 5
Package / Case TO-252-5, DPak (4 Leads + Tab), TO-252AD
Mounting Type Surface Mount
Mount Surface Mount
Contact Plating Tin
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 7 months ago)
Factory Lead Time 24 Weeks
Alternative Model
