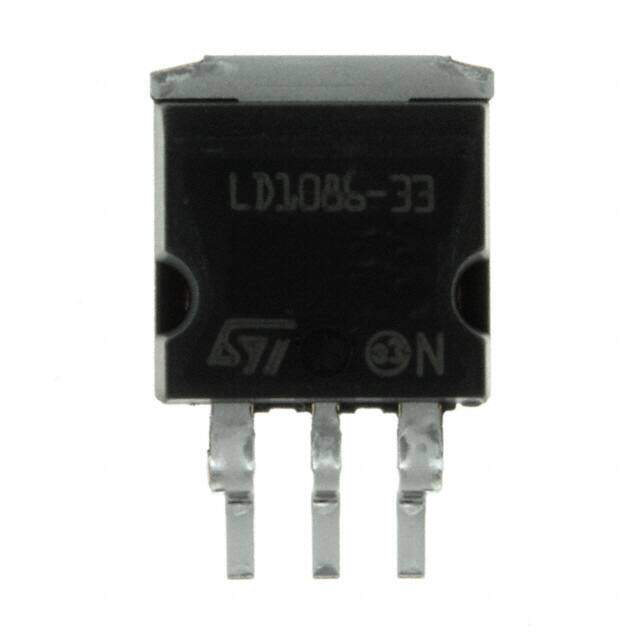

LD1086D2M33TR
RoHS
RoHS compliant
RoHS compliantPackage TO-263-4, D2Pak (3 Leads + Tab), TO-263AA
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description
LD1086 Tape & Reel (TR) Surface Mount Over Current Over Temperature voltage regulator linear 1.3V 4.6mm 1.5A -40C~125C
PDF
/
Buying Options
Total Price: USD $1.46
Unit Price: USD $1.4608
≥1 USD $1.4608
≥10 USD $1.30504
≥100 USD $1.23904
≥500 USD $1.017632
≥1000 USD $0.95128
≥3000 USD $0.840664
Inventory: 1574
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case TO-263-4, D2Pak (3 Leads + Tab), TO-263AA
Number of Pins 3
Weight 4.535924g
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
JESD-609 Code e3
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 3
ECCN Code EAR99
Terminal Finish Matte Tin (Sn) - annealed
Subcategory Other Regulators
Packing Method TAPE AND REEL
Technology BIPOLAR
Terminal Position SINGLE
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 245
Number of Functions 1
Terminal Pitch 2.54mm
Time@Peak Reflow Temperature-Max (s) 30
Base Part Number LD1086
Pin Count 3
Number of Outputs 1
Voltage - Input (Max) 30V
Output Voltage 3.3V
Output Type Fixed
Max Output Current 1.5A
Output Configuration Positive
Quiescent Current 10mA
Accuracy 1 %
Output Voltage 1 3.3V
Number of Regulators 1
Min Input Voltage 6.3V
Protection Features Over Current, Over Temperature
Voltage Dropout (Max) 1.5V @ 1.5A
PSRR 79dB (120Hz)
Dropout Voltage 1.3V
Dropout Voltage1-Nom 1.3V
Min Output Voltage 3.3V
Voltage Tolerance-Max 2%
Nominal Output Voltage 3.3V
Input Bias Current 5mA
Output Voltage Accuracy 1 %
Dimensions
Height 4.6mm
Length 10.4mm
Width 9.35mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
