L4937N
RoHS
RoHS compliant

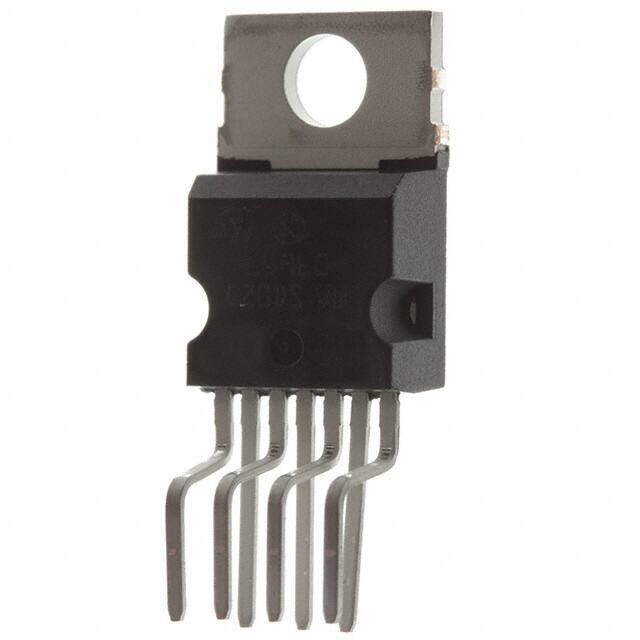

RoHS compliantPackage Heptawatt-7 (Vertical, Bent and Staggered Leads)
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description
L4937 Tube Through Hole Over Temperature Short Circuit voltage regulator linear 200mV 50mA 500mA 5W -40C~125C
PDF
/
Buying Options
Total Price: USD $6.08
Unit Price: USD $6.08095
≥1 USD $6.08095
≥10 USD $4.9894
≥100 USD $4.8336
≥500 USD $4.6778
≥1000 USD $4.52105
Inventory: 1129
Minimum: 1
-
+
Technical Details
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Heptawatt-7 (Vertical, Bent and Staggered Leads)
Number of Pins 7
Technical
Operating Temperature -40°C~125°C
Packaging Tube
JESD-609 Code e0
Part Status Obsolete
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 7
ECCN Code EAR99
Terminal Finish TIN LEAD
Subcategory Other Regulators
Max Power Dissipation 5W
Technology BIPOLAR
Terminal Position ZIG-ZAG
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Base Part Number L4937
Pin Count 7
Number of Outputs 2
Qualification Status Not Qualified
Voltage - Input (Max) 25V
Output Voltage 5V
Output Type Fixed
Output Configuration Positive
Current - Output 50mA 500mA
Control Features Enable, Reset
Output Voltage 1 5V
Voltage - Output (Min/Fixed) 5V Tracking
Number of Regulators 2
Min Input Voltage 6V
Protection Features Over Temperature, Short Circuit
Voltage Dropout (Max) 0.4V @ 50mA 0.6V @ 500mA
Dropout Voltage 200mV
Dropout Voltage1-Nom 0.3V
Voltage Tolerance-Max 7%
Min Current Limit 550mA
Output Voltage 2 5V
Compliance
RoHS Status ROHS3 Compliant
