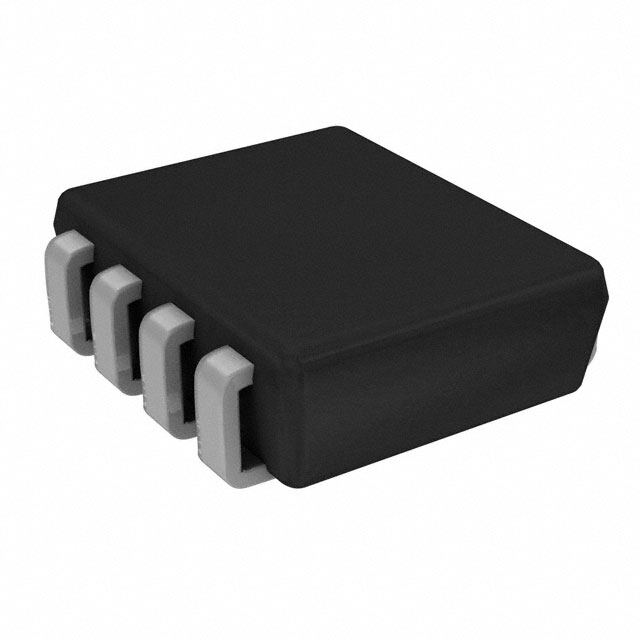

AAT3258ITS-3.3-R-T1
RoHS
RoHS compliant
RoHS compliantPackage 8-TSSOJ (0.094, 2.40mm Width)
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description
Tape & Reel (TR) Surface Mount Over Current Over Temperature Short Circuit ROHS3Compliant voltage regulator linear 400mV 300mA 833mW -40C￣85C
PDF
/
Buying Options
Total Price: USD $1.73
Unit Price: USD $1.7328
≥1 USD $1.7328
≥10 USD $1.4212
≥100 USD $1.3775
≥500 USD $1.33285
≥1000 USD $1.2882
Inventory: 1174
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Technical
Input Bias Current 70??A
Min Output Voltage 3.3V
Dropout Voltage 400mV
PSRR 67dB ￣ 45dB (1kHz ￣ 100kHz)
Voltage Dropout (Max) 0.6V @ 300mA
Current - Quiescent (Iq) 125??A
Protection Features Over Current, Over Temperature, Short Circuit
Min Input Voltage 3.9V
Number of Regulators 1
Control Features Enable, Manual Reset, Reset
Output Configuration Positive
Max Output Current 300mA
Output Type Fixed
Output Voltage 3.3V
Voltage - Input (Max) 5.5V
Reach Compliance Code unknown
Max Power Dissipation 833mW
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Packaging Tape & Reel (TR)
Operating Temperature -40??C￣85??C
Physical
Number of Pins 8
Package / Case 8-TSSOJ (0.094, 2.40mm Width)
Mounting Type Surface Mount
Mount Surface Mount
