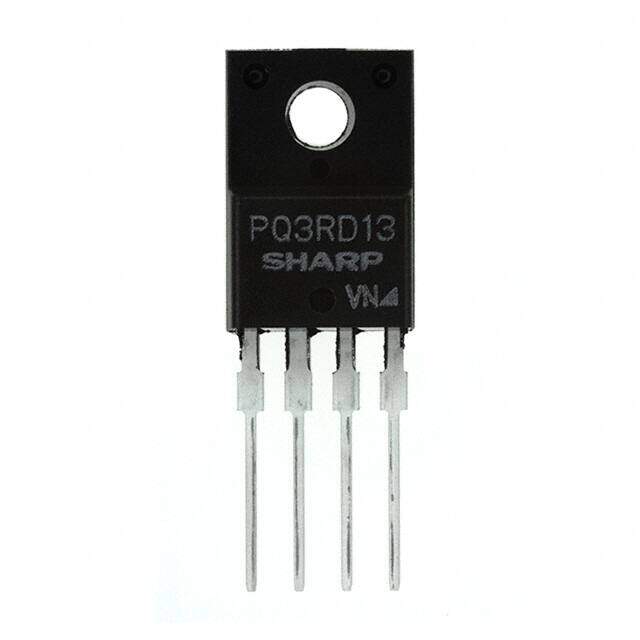

PQ3RD13J000H
RoHS
/
Package TO-220-4
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description
Obsolete Lead Free Positive 2001 voltage regulator linear -20C~80C 15W 1A 500mV
PDF
/
Buying Options
Total Price: USD $0.94
Unit Price: USD $0.9405
≥1 USD $0.9405
≥10 USD $0.7714
≥100 USD $0.74765
≥500 USD $0.72295
≥1000 USD $0.6992
Inventory: 1198
Minimum: 1
-
+
Technical Details
Technical
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Max Operating Temperature 80°C
Min Operating Temperature -20°C
Max Power Dissipation 15W
Number of Outputs 1
Voltage - Input (Max) 20V
Output Voltage 3.3V
Output Type Fixed
Output Configuration Positive
Current - Output 1A
Control Features Enable
Voltage - Output (Min/Fixed) 3.3V
Number of Regulators 1
Protection Features Over Current, Over Temperature
Current - Quiescent (Iq) 10mA
Voltage Dropout (Max) 0.5V @ 500mA
Max Input Voltage 20V
PSRR 55dB (120Hz)
Dropout Voltage 500mV
Published 2001
Packaging Tube
Operating Temperature -20°C~80°C
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
Physical
Supplier Device Package TO-220-4
Package / Case TO-220-4
Mounting Type Through Hole
Mount Through Hole
