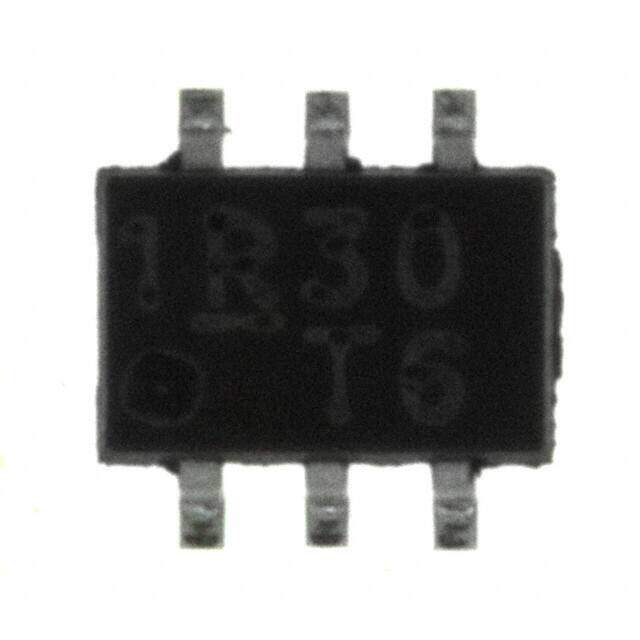

PQ1R30
RoHS
/
Package SOT-23L-6
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description
Cut Tape (CT) Surface Mount Over Current Over Temperature Non-RoHS Compliant voltage regulator linear 290mV 3.4mm 150mA -30C~80C
PDF
/
Buying Options
Total Price: USD $1.31
Unit Price: USD $1.31385
≥1 USD $1.31385
≥10 USD $1.07825
≥100 USD $1.04405
≥500 USD $1.0108
≥1000 USD $0.9766
Inventory: 1362
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status Non-RoHS Compliant
Dimensions
Width 2.2mm
Length 3.4mm
Technical
Dropout Voltage 290mV
PSRR 55dB (400Hz)
Voltage Dropout (Max) 0.4V @ 150mA
Current - Quiescent (Iq) 350μA
Protection Features Over Current, Over Temperature
Number of Regulators 1
Input Voltage (Min) 4V
Output Voltage 1 3V
Control Features Enable
Current - Output 150mA
Output Configuration Positive
Output Type Fixed
Output Voltage 3V
Voltage - Input (Max) 16V
Qualification Status Not Qualified
JESD-30 Code R-PDSO-G6
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Reach Compliance Code unknown
Terminal Pitch 0.95mm
Number of Functions 1
Peak Reflow Temperature (Cel) 240
Terminal Form GULL WING
Terminal Position DUAL
Terminal Finish Tin/Lead (Sn/Pb)
Number of Terminations 6
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
JESD-609 Code e0
Published 1999
Packaging Cut Tape (CT)
Operating Temperature -30°C~80°C
Physical
Package / Case SOT-23L-6
Mounting Type Surface Mount
Mount Surface Mount
