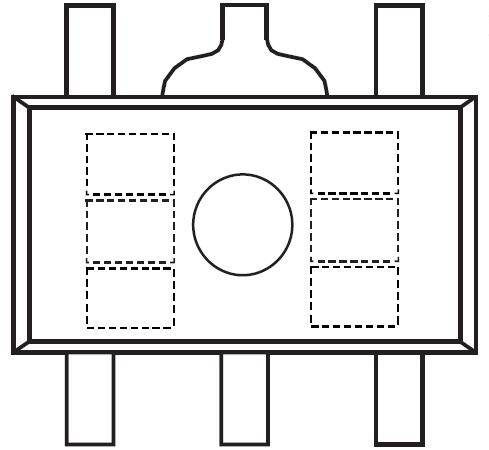

PQ1M335M2SPQ image
Favorite
PQ1M335M2SPQ image
Favorite
RoHS
/
Package SOT-89-5/6
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description Tape & Reel (TR) Surface Mount Over Current Over Temperature RoHS Compliant voltage regulator linear 400mV 500mA 900mW -30C~85C
PDF
/
Buying Options
Total Price: USD $25.45
Unit Price: USD $25.4467
≥1 USD $25.4467
≥10 USD $20.88005
≥100 USD $20.2274
≥500 USD $19.57475
≥1000 USD $18.9221
Inventory: 1184
Minimum: 1
-
+

Technical Details

Physical

Mount Surface Mount
Mounting Type Surface Mount
Package / Case SOT-89-5/6
Number of Pins 5
Supplier Device Package SOT-89

Technical

Operating Temperature -30°C~85°C
Packaging Tape & Reel (TR)
Published 2002
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Max Operating Temperature 85°C
Min Operating Temperature -30°C
Max Power Dissipation 900mW
Number of Outputs 1
Voltage - Input (Max) 9V
Output Voltage 3.3V
Output Type Fixed
Output Configuration Positive
Current - Output 500mA
Control Features Enable
Voltage - Output (Min/Fixed) 3.3V
Number of Regulators 1
Protection Features Over Current, Over Temperature
Current - Quiescent (Iq) 1mA
Voltage Dropout (Max) 0.7V @ 500mA
Max Input Voltage 9V
PSRR 65dB (400Hz)
Dropout Voltage 400mV
Input Bias Current 600μA

Compliance

RoHS Status RoHS Compliant
Lead Free Lead Free
