PQ1LA903MSPQ
RoHS
/

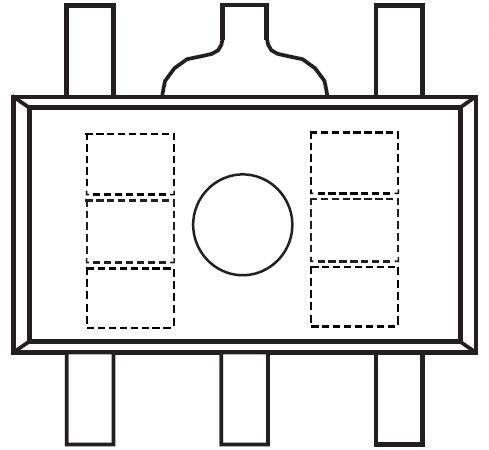

Package SOT-89-5/6
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description
Tape & Reel (TR) Surface Mount Over Current Over Temperature RoHS Compliant voltage regulator linear 400mV 300mA 900mW -40C~85C
PDF
/
Inventory: 6929
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case SOT-89-5/6
Supplier Device Package SOT-89
Technical
Operating Temperature -40°C~85°C
Packaging Tape & Reel (TR)
Published 1998
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Max Power Dissipation 900mW
Number of Outputs 1
Voltage - Input (Max) 15V
Output Voltage 9V
Output Type Fixed
Output Configuration Positive
Current - Output 300mA
Control Features Enable
Voltage - Output (Min/Fixed) 9V
Number of Regulators 1
Min Input Voltage 2.5V
Protection Features Over Current, Over Temperature
Current - Quiescent (Iq) 800μA
Voltage Dropout (Max) 0.7V @ 300mA
Max Input Voltage 15V
PSRR 55dB (400Hz)
Dropout Voltage 400mV
Input Bias Current 550μA
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
