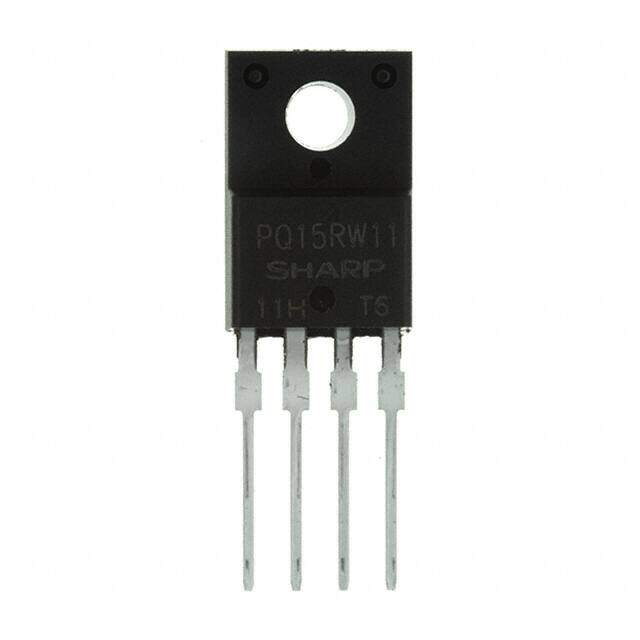

PQ15RW11J00H image
Favorite
PQ15RW11J00H image
Favorite
RoHS
/
Package TO-220-4
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description Tube Through Hole Over Current Over Temperature RoHS Compliant voltage regulator linear 500mV 1A 15W -20C~80C
PDF
/
Buying Options
Total Price: USD $0.71
Unit Price: USD $0.710144
≥1 USD $0.710144
≥10 USD $0.669942
≥100 USD $0.63202
≥500 USD $0.596253
≥1000 USD $0.562498
Inventory: 1211
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status RoHS Compliant

Technical

Output Voltage Accuracy 4 %
Voltage - Output (Max) 15V
Dropout Voltage 500mV
Reference Voltage 1.275V
PSRR 55dB (120Hz)
Max Input Voltage 35V
Voltage Dropout (Max) 0.5A @ 500mA
Current - Quiescent (Iq) 8mA
Protection Features Over Current, Over Temperature
Min Input Voltage 4.5V
Number of Regulators 1
Voltage - Output (Min/Fixed) 3V
Quiescent Current 7mA
Current - Output 1A
Power Dissipation 15W
Output Configuration Positive
Polarity Positive
Output Type Adjustable
Output Voltage 30V
Voltage - Input (Max) 20V
Number of Outputs 1
Max Power Dissipation 15W
Min Operating Temperature -20°C
Max Operating Temperature 80°C
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Published 1999
Packaging Tube
Operating Temperature -20°C~80°C

Physical

Supplier Device Package TO-220-4
Package / Case TO-220-4
Mounting Type Through Hole
Mount Through Hole
