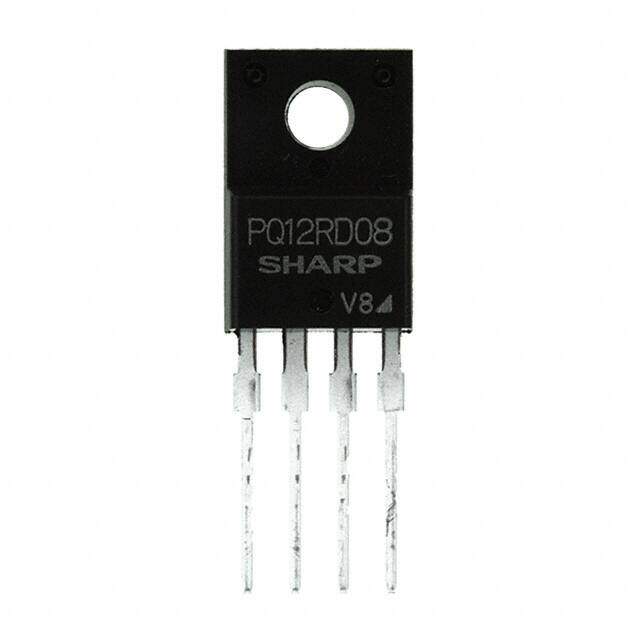

PQ12RD08J00H image
Favorite
PQ12RD08J00H image
Favorite
RoHS
/
Package TO-220-4
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description Tube Through Hole Over Current Over Temperature RoHS Compliant voltage regulator linear 500mV 800mA 10W -20C~80C
PDF
/
Inventory: 2202
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Physical

Mount Through Hole
Mounting Type Through Hole
Package / Case TO-220-4

Technical

Operating Temperature -20°C~80°C
Packaging Tube
Published 2001
JESD-609 Code e2
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 4
Terminal Finish TIN COPPER
Max Power Dissipation 10W
Terminal Position SINGLE
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Reach Compliance Code unknown
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
JESD-30 Code R-PSFM-T4
Qualification Status Not Qualified
Voltage - Input (Max) 20V
Output Voltage 12V
Output Type Fixed
Output Configuration Positive
Current - Output 800mA
Control Features Enable
Output Voltage 1 12V
Number of Regulators 1
Protection Features Over Current, Over Temperature
Current - Quiescent (Iq) 10mA
Voltage Dropout (Max) 0.5V @ 500mA
PSRR 55dB (120Hz)
Dropout Voltage 500mV

Compliance

RoHS Status RoHS Compliant
Lead Free Lead Free
