PQ070XH02ZPH
RoHS
/

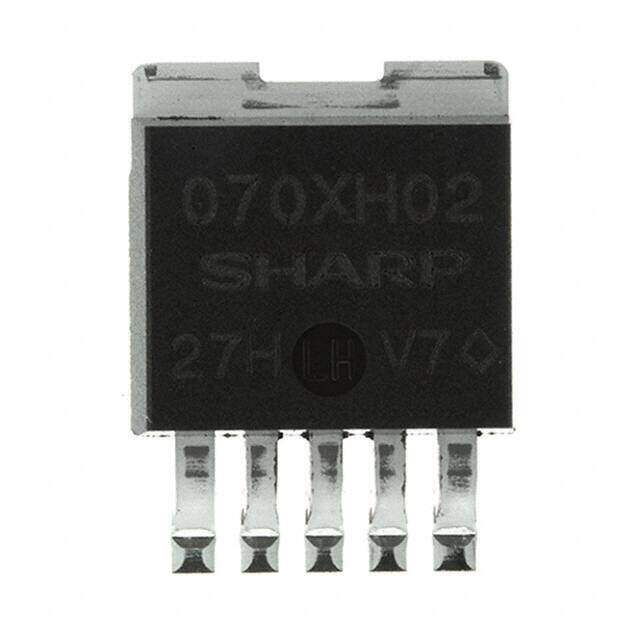

Package TO-263-6, D2Pak (5 Leads + Tab), TO-263BA
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description
Tape & Reel (TR) Surface Mount Over Current Over Temperature RoHS Compliant voltage regulator linear 500mV 4mm 2A 35W
PDF
/
Buying Options
Total Price: USD $0.64
Unit Price: USD $0.6365
≥1 USD $0.6365
≥10 USD $0.5225
≥100 USD $0.50635
≥500 USD $0.48925
≥1000 USD $0.4731
Inventory: 1547
Minimum: 1
-
+
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case TO-263-6, D2Pak (5 Leads + Tab), TO-263BA
Technical
Operating Temperature -40°C~85°C
Packaging Tape & Reel (TR)
Published 2001
JESD-609 Code e2
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 5
Terminal Finish TIN COPPER
Max Power Dissipation 35W
Terminal Position SINGLE
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Reach Compliance Code unknown
Time@Peak Reflow Temperature-Max (s) 10
JESD-30 Code R-PSSO-G5
Qualification Status Not Qualified
Voltage - Input (Max) 10V
Output Voltage 7V
Output Type Adjustable
Output Configuration Positive
Current - Output 2A
Control Features Enable
Voltage - Output (Min/Fixed) 1.5V
Number of Regulators 1
Min Input Voltage 2.35V
Protection Features Over Current, Over Temperature
Current - Quiescent (Iq) 2mA
Voltage Dropout (Max) 0.5V @ 2A
PSRR 60dB (120Hz)
Reference Voltage 1.275V
Dropout Voltage 500mV
Input Bias Current 1mA
Dimensions
Height Seated (Max) 4mm
Width 8.4mm
Compliance
RoHS Status RoHS Compliant
Alternative Model
