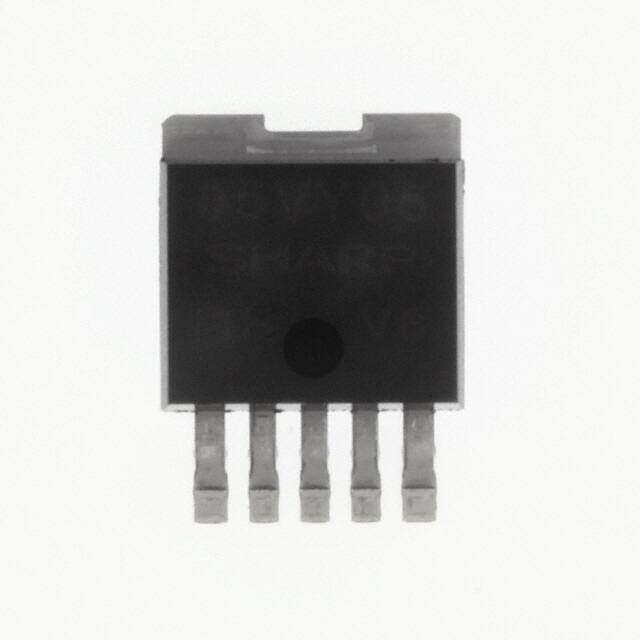

PQ05VY053ZZH image
Favorite
PQ05VY053ZZH image
Favorite
RoHS
/
Package TO-263
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description Tube Surface Mount RoHS Compliant TIN COPPER voltage regulator linear 500mV 4.25mm 5mA 35W
PDF
/
Inventory: 2424
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Physical

Mount Surface Mount
Package / Case TO-263

Technical

Packaging Tube
Published 2001
JESD-609 Code e2
Part Status Obsolete
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 5
Terminal Finish TIN COPPER
Max Operating Temperature 80°C
Min Operating Temperature -20°C
Max Power Dissipation 35W
Terminal Position SINGLE
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Time@Peak Reflow Temperature-Max (s) 10
JESD-30 Code R-PSSO-G5
Number of Outputs 1
Qualification Status Not Qualified
Output Voltage 5V
Output Type Adjustable
Output Current 5A
Min Input Voltage 2.35V
Max Input Voltage 7V
Reference Voltage 1.252V
Dropout Voltage 500mV
Input Bias Current 5mA

Dimensions

Height Seated (Max) 4.25mm
Width 8.4mm

Compliance

RoHS Status RoHS Compliant
Lead Free Lead Free
