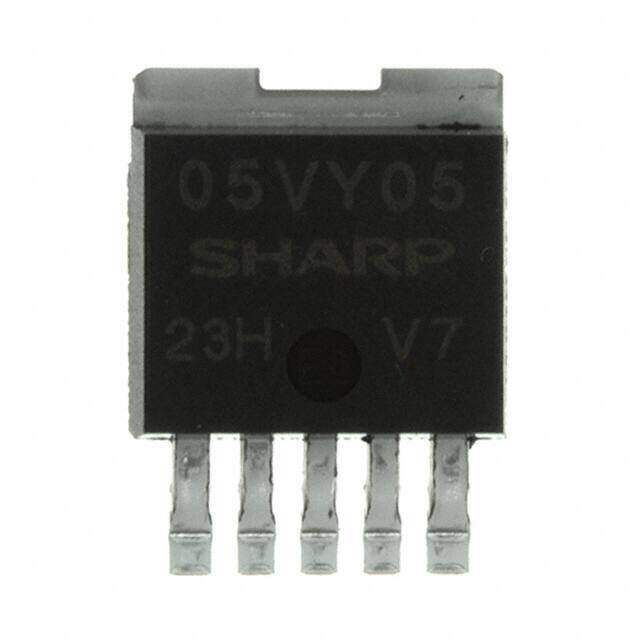

PQ05VY053ZPH
RoHS
/
Package TO-263-6, D2Pak (5 Leads + Tab), TO-263BA
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description
Tape & Reel (TR) Surface Mount Over Current Over Temperature RoHS Compliant voltage regulator linear 500mV 4.25mm 5A 35W
PDF
/
Buying Options
Total Price: USD $5.58
Unit Price: USD $5.57935
≥1 USD $5.57935
≥10 USD $4.57805
≥100 USD $4.4346
≥500 USD $4.29115
≥1000 USD $4.14865
Inventory: 1125
Minimum: 1
-
+
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case TO-263-6, D2Pak (5 Leads + Tab), TO-263BA
Technical
Operating Temperature -20°C~80°C
Packaging Tape & Reel (TR)
Published 2001
JESD-609 Code e2
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 5
Terminal Finish TIN COPPER
Max Power Dissipation 35W
Terminal Position SINGLE
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Reach Compliance Code unknown
Time@Peak Reflow Temperature-Max (s) 10
JESD-30 Code R-PSSO-G5
Qualification Status Not Qualified
Voltage - Input (Max) 7V
Output Voltage 5V
Output Type Adjustable
Output Configuration Positive
Current - Output 5A
Control Features Enable
Voltage - Output (Min/Fixed) 1.5V
Number of Regulators 1
Min Input Voltage 2.35V
Protection Features Over Current, Over Temperature
Current - Quiescent (Iq) 10mA
Voltage Dropout (Max) 0.5V @ 5A
PSRR 70dB (120Hz)
Reference Voltage 1.252V
Dropout Voltage 500mV
Input Bias Current 5mA
Dimensions
Height Seated (Max) 4.25mm
Width 8.4mm
Compliance
RoHS Status RoHS Compliant
