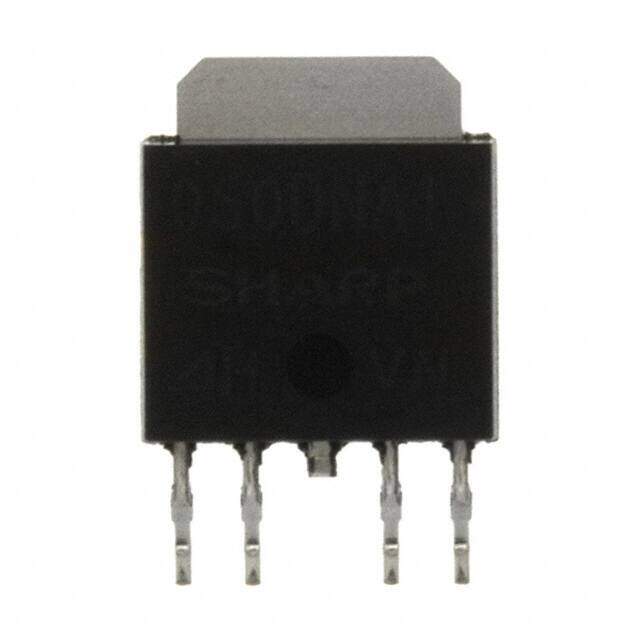

PQ050DNA1ZPH image
Favorite
PQ050DNA1ZPH image
Favorite
RoHS
/
Package TO-252-5, DPak (4 Leads + Tab), TO-252AD
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description Tape & Reel (TR) Surface Mount Over Current Over Temperature RoHS Compliant voltage regulator linear 200mV 1A 8W -40C~85C
PDF
/
Buying Options
Total Price: USD $0.4
Unit Price: USD $0.4028
≥1 USD $0.4028
≥10 USD $0.3306
≥100 USD $0.32015
≥500 USD $0.31065
≥1000 USD $0.3002
Inventory: 1137
Minimum: 1
-
+

Technical Details

Physical

Mount Surface Mount
Mounting Type Surface Mount
Package / Case TO-252-5, DPak (4 Leads + Tab), TO-252AD
Number of Pins 63
Supplier Device Package SC-63

Technical

Operating Temperature -40°C~85°C
Packaging Tape & Reel (TR)
Published 1999
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Max Power Dissipation 8W
Number of Outputs 1
Voltage - Input (Max) 24V
Output Voltage 5V
Output Type Fixed
Max Output Current 1A
Polarity Positive
Output Configuration Positive
Power Dissipation 8W
Current - Output 1A
Control Features Enable
Voltage - Output (Min/Fixed) 5V
Number of Regulators 1
Protection Features Over Current, Over Temperature
Current - Quiescent (Iq) 8mA
Voltage Dropout (Max) 0.5V @ 500mA
Max Input Voltage 24V
PSRR 60dB (120Hz)
Dropout Voltage 200mV
Input Bias Current 4mA

Compliance

Radiation Hardening No
RoHS Status RoHS Compliant
Lead Free Lead Free
