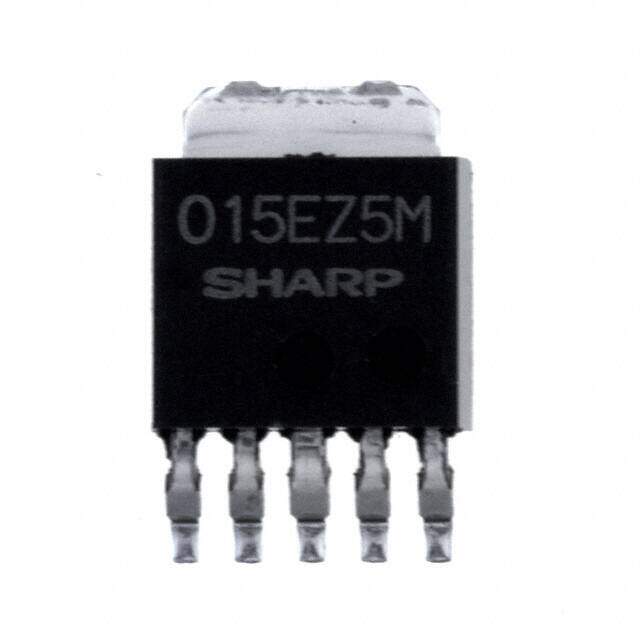

PQ015EZ5MZZ
RoHS
/
Package TO-252-6
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description
Tube Surface Mount Non-RoHS Compliant Tin/Lead (Sn/Pb) voltage regulator linear 200mV 3.05mm 500mA 85C
PDF
/
Buying Options
Total Price: USD $0.31
Unit Price: USD $0.308
≥1 USD $0.308
≥10 USD $0.26312
≥100 USD $0.247104
≥500 USD $0.22396
≥1000 USD $0.22
Inventory: 1099
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status Non-RoHS Compliant
Dimensions
Width 5.5mm
Height Seated (Max) 3.05mm
Technical
Regulator Type FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR
Dropout Voltage 200mV
Number of Regulators 1
Input Voltage (Min) 2.35V
Output Voltage 1 1.5V
Output Current 500mA
Output Voltage 1.5V
Qualification Status Not Qualified
JESD-30 Code R-PSSO-G5
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Reach Compliance Code unknown
Number of Functions 1
Peak Reflow Temperature (Cel) 240
Terminal Form GULL WING
Terminal Position SINGLE
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Terminal Finish Tin/Lead (Sn/Pb)
Number of Terminations 5
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
JESD-609 Code e0
Published 2000
Packaging Tube
Physical
Package / Case TO-252-6
Mount Surface Mount
