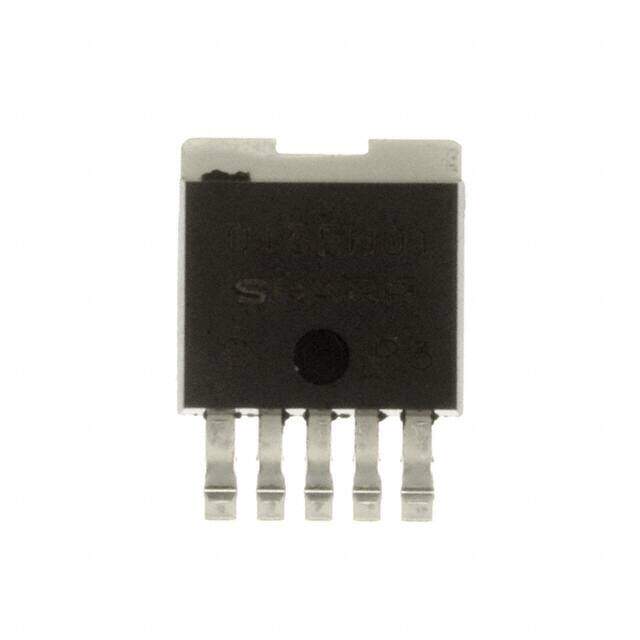

PQ015EH01ZZ
RoHS
/
Package TO-263-6
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description
Tube Surface Mount Non-RoHS Compliant Tin/Lead (Sn/Pb) voltage regulator linear 2.35V 4.25mm 1A 85C
PDF
/
Buying Options
Total Price: USD $0.33
Unit Price: USD $0.3256
≥1 USD $0.3256
≥10 USD $0.27632
≥100 USD $0.259424
≥500 USD $0.235136
≥1000 USD $0.220246
Inventory: 1157
Minimum: 1
-
+
Technical Details
Physical
Mount Surface Mount
Package / Case TO-263-6
Technical
Packaging Tube
Published 2000
JESD-609 Code e0
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 5
Terminal Finish Tin/Lead (Sn/Pb)
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Terminal Position SINGLE
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 240
Number of Functions 1
Reach Compliance Code unknown
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
JESD-30 Code R-PSSO-G5
Qualification Status Not Qualified
Output Voltage 1.5V
Output Current 1A
Output Voltage 1 1.5V
Input Voltage (Min) 2.35V
Number of Regulators 1
Regulator Type FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR
Dimensions
Height Seated (Max) 4.25mm
Width 8.4mm
Compliance
RoHS Status Non-RoHS Compliant
Lead Free Contains Lead
