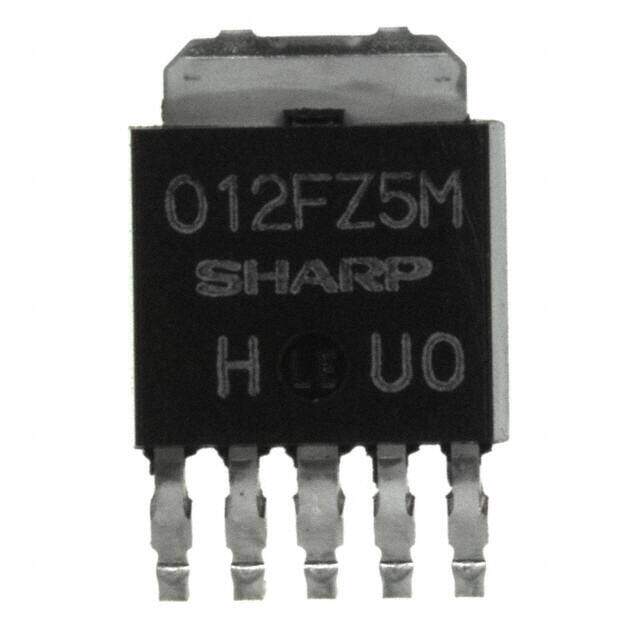

PQ012FZ5MZZH image
Favorite
PQ012FZ5MZZH image
Favorite
RoHS
/
Package TO-252-6
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description Tube Surface Mount RoHS Compliant TIN COPPER voltage regulator linear 3.7V 3.05mm 500mA 8W
PDF
/
Inventory: 1233
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Physical

Mount Surface Mount
Package / Case TO-252-6
Number of Pins 63

Technical

Packaging Tube
Published 2002
JESD-609 Code e2
Part Status Obsolete
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 5
Terminal Finish TIN COPPER
Max Operating Temperature 125°C
Min Operating Temperature 0°C
Max Power Dissipation 8W
Terminal Position SINGLE
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Time@Peak Reflow Temperature-Max (s) 10
JESD-30 Code R-PSSO-G5
Number of Outputs 1
Qualification Status Not Qualified
Output Voltage 1.2V
Output Type Fixed
Polarity Positive
Output Current 500mA
Output Voltage 1 1.2V
Min Input Voltage 1.7V
Max Input Voltage 3.7V

Dimensions

Height Seated (Max) 3.05mm
Width 5.5mm

Compliance

RoHS Status RoHS Compliant
Lead Free Lead Free
