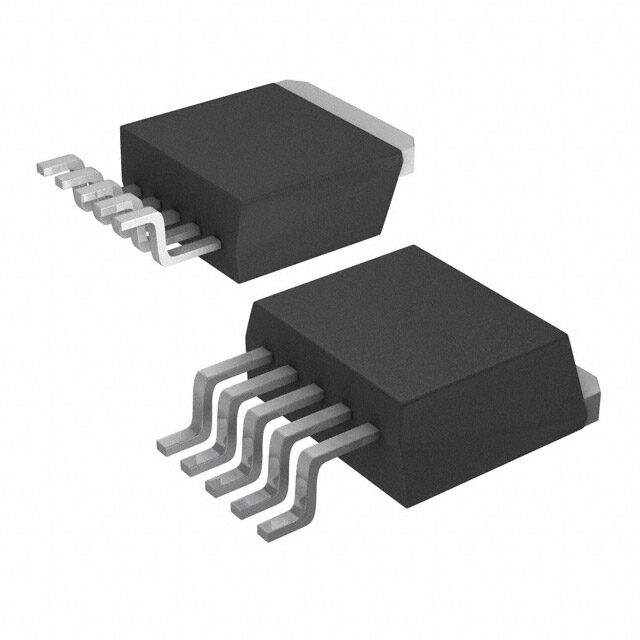

SI-3012KD
RoHS
RoHS compliant
RoHS compliantPackage TO-263-6, D2Pak (5 Leads + Tab), TO-263BA
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description
Tape & Reel (TR) Surface Mount Over Current Over Temperature RoHS Compliant voltage regulator linear 1.28V 4.95mm 1A -30C~125C
PDF
/
Inventory: 7677
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case TO-263-6, D2Pak (5 Leads + Tab), TO-263BA
Technical
Operating Temperature -30°C~125°C
Packaging Tape & Reel (TR)
Published 2012
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 5
ECCN Code EAR99
Terminal Position SINGLE
Terminal Form GULL WING
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Pin Count 4
JESD-30 Code R-PSSO-G5
Qualification Status Not Qualified
Voltage - Input (Max) 17V
Output Voltage 1.28V
Output Type Adjustable
Output Configuration Positive
Current - Output 1A
Voltage - Output (Min/Fixed) 1.5V
Number of Regulators 1
Protection Features Over Current, Over Temperature
Current - Quiescent (Iq) 350μA
Voltage Dropout (Max) 0.6V @ 1A
PSRR 55dB (100Hz ~ 120Hz)
Voltage - Output (Max) 5V
Dimensions
Height Seated (Max) 4.95mm
Width 9.2mm
Compliance
RoHS Status RoHS Compliant
