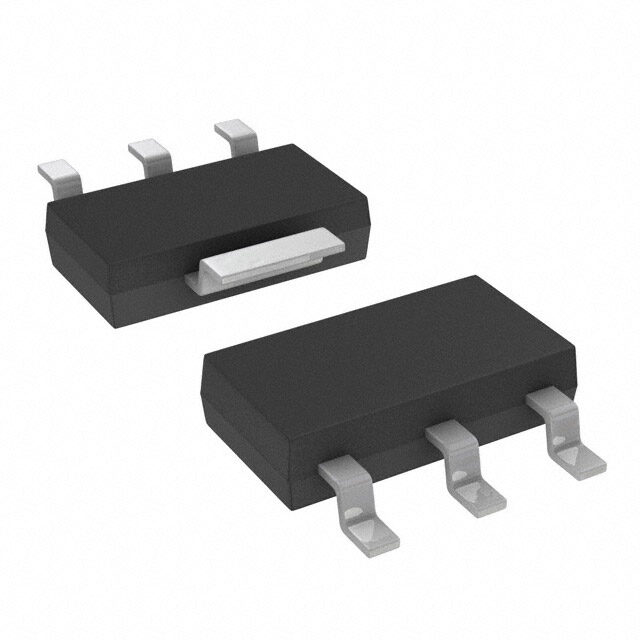

BD433M2WFP3-CE2
RoHS
RoHS compliant
RoHS compliantPackage TO-261-4, TO-261AA
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description
Tape & Reel (TR) Surface Mount Over Current Over Temperature ROHS3Compliant voltage regulator linear 200mV 6.53mm 200mA -40C~150C
PDF
/
Buying Options
Total Price: USD $1.72
Unit Price: USD $1.7248
≥1 USD $1.7248
≥10 USD $1.54968
≥100 USD $1.462208
≥500 USD $1.245728
≥1000 USD $1.169661
≥3000 USD $1.023458
Inventory: 1224
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 15 Weeks
Physical
Mounting Type Surface Mount
Package / Case TO-261-4, TO-261AA
Surface Mount YES
Number of Pins 4
Technical
Operating Temperature -40°C~150°C
Packaging Tape & Reel (TR)
Published 2007
Series Automotive, AEC-Q100
JESD-609 Code e3
Part Status Not For New Designs
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 4
ECCN Code EAR99
Terminal Finish Tin (Sn)
Terminal Position DUAL
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Terminal Pitch 2.3mm
Time@Peak Reflow Temperature-Max (s) 10
Current - Supply (Max) 150μA
Voltage - Input (Max) 42V
Output Voltage 3.3V
Output Type Fixed
Output Configuration Positive
Current - Output 200mA
Control Features Enable
Output Voltage 1 3.3V
Number of Regulators 1
Min Input Voltage 4.3V
Protection Features Over Current, Over Temperature
Current - Quiescent (Iq) 90μA
Voltage Dropout (Max) 0.45V @ 100mA
PSRR 65dB (120Hz)
Dropout Voltage 200mV
Nominal Output Voltage 3.3V
Dimensions
Length 6.53mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
Lead Free Lead Free
