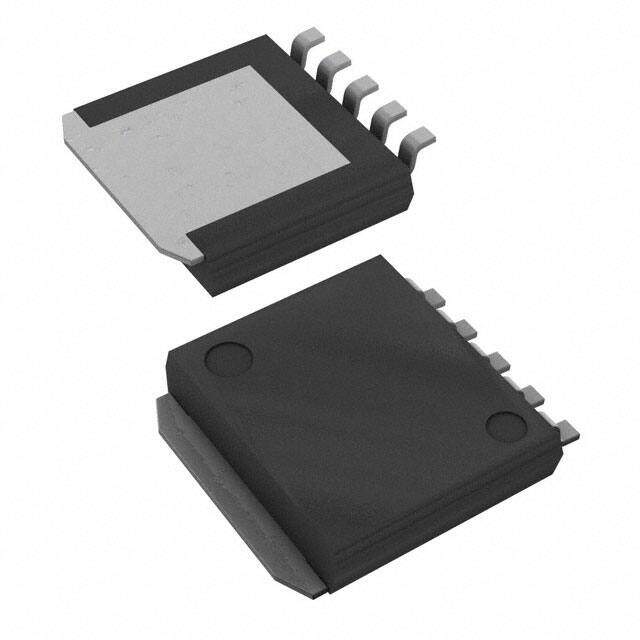

BD42530FP2-CE2
RoHS
RoHS compliant
RoHS compliantPackage TO-263-6, D2Pak (5 Leads + Tab), TO-263BA
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description
Cut Tape (CT) Surface Mount Over Current Over Temperature ROHS3Compliant voltage regulator linear 13.5V 4.95mm 250mA -40C~125C TA
PDF
/
Buying Options
Total Price: USD $2.46
Unit Price: USD $2.4552
≥1 USD $2.4552
≥10 USD $2.2088
≥100 USD $2.087712
≥500 USD $1.809456
≥1000 USD $1.716634
Inventory: 1006
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Mounting Type Surface Mount
Package / Case TO-263-6, D2Pak (5 Leads + Tab), TO-263BA
Surface Mount YES
Technical
Operating Temperature -40°C~125°C TA
Packaging Cut Tape (CT)
Series Automotive, AEC-Q100
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 5
Terminal Position SINGLE
Terminal Form GULL WING
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Supply Voltage 13.5V
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
JESD-30 Code R-PSSO-G5
Current - Supply (Max) 80μA
Voltage - Input (Max) 42V
Output Type Adjustable (Fixed)
Supply Voltage-Max (Vsup) 42V
Supply Voltage-Min (Vsup) 5.6V
Analog IC - Other Type ANALOG CIRCUIT
Output Configuration Positive
Current - Output 250mA
Control Features Enable
Voltage - Output (Min/Fixed) 2V
Number of Regulators 1
Protection Features Over Current, Over Temperature
Voltage Dropout (Max) 0.6V @ 200mA
PSRR 80dB (120Hz)
Voltage - Output (Max) 16V
Dimensions
Height Seated (Max) 4.95mm
Compliance
RoHS Status ROHS3 Compliant
