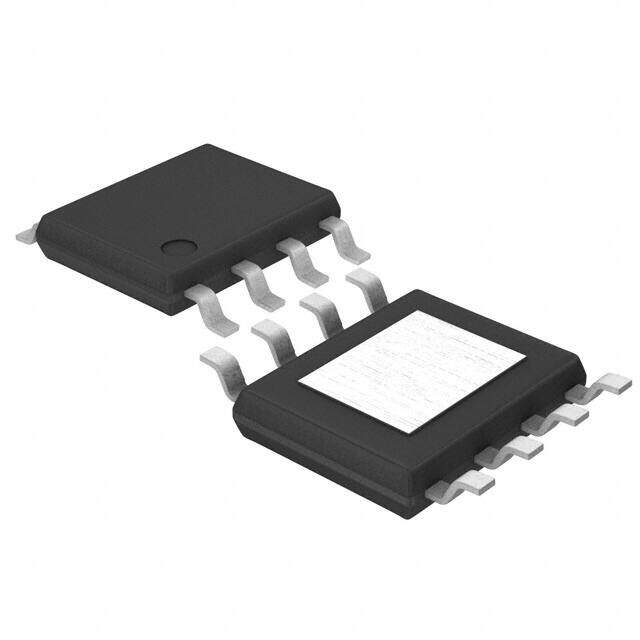

BD42530EFJ-CE2
RoHS
RoHS compliant
RoHS compliantPackage 8-SOIC (0.154, 3.90mm Width) Exposed Pad
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description
Cut Tape (CT) Surface Mount Over Current Over Temperature ROHS3Compliant voltage regulator linear 13.5V 4.9mm 250mA -40C~125C TA
PDF
/
Buying Options
Total Price: USD $0.93
Unit Price: USD $0.9328
≥1 USD $0.9328
≥10 USD $0.83336
≥100 USD $0.791296
≥500 USD $0.650056
≥1000 USD $0.607658
≥3000 USD $0.537011
Inventory: 18668
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 3.9mm
Length 4.9mm
Technical
Voltage - Output (Max) 16V
PSRR 80dB (120Hz)
Voltage Dropout (Max) 0.6V @ 200mA
Protection Features Over Current, Over Temperature
Number of Regulators 1
Voltage - Output (Min/Fixed) 2V
Control Features Enable
Current - Output 250mA
Output Configuration Positive
Analog IC - Other Type ANALOG CIRCUIT
Supply Voltage-Min (Vsup) 5.6V
Supply Voltage-Max (Vsup) 42V
Output Type Adjustable (Fixed)
Voltage - Input (Max) 42V
Current - Supply (Max) 80μA
JESD-30 Code R-PDSO-G8
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Supply Voltage 13.5V
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form GULL WING
Terminal Position DUAL
Number of Terminations 8
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series Automotive, AEC-Q100
Packaging Cut Tape (CT)
Operating Temperature -40°C~125°C TA
Physical
Surface Mount YES
Package / Case 8-SOIC (0.154, 3.90mm Width) Exposed Pad
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 11 Weeks
