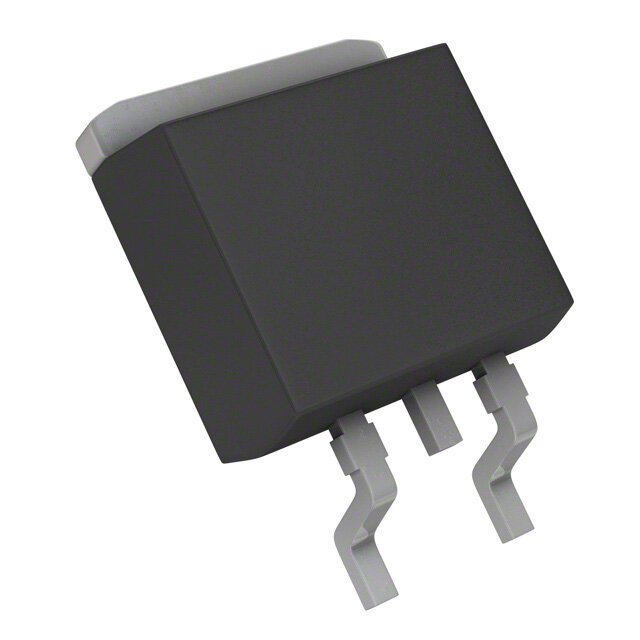

BA78M07FP-E2
RoHS
RoHS compliant
RoHS compliantPackage TO-252-3, DPak (2 Leads + Tab), SC-63
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description
BA78M Tape & Reel (TR) Surface Mount Over Current Over Temperature voltage regulator linear 2V 6.5mm 500mA 10W
PDF
/
Buying Options
Total Price: USD $0.77
Unit Price: USD $0.7656
≥1 USD $0.7656
≥10 USD $0.6776
≥100 USD $0.636416
Inventory: 129
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 5.5mm
Length 6.5mm
Height Seated (Max) 2.5mm
Technical
Voltage Tolerance-Max 5%
Dropout Voltage1-Nom 2V
Dropout Voltage 2V
PSRR 71dB (120Hz)
Voltage Dropout (Max) 2V @ 500mA Typ
Current - Quiescent (Iq) 6mA
Protection Features Over Current, Over Temperature
Min Input Voltage 9.5V
Number of Regulators 1
Output Voltage 1 7V
Output Configuration Positive
Max Output Current 500mA
Output Type Fixed
Output Voltage 7V
Voltage - Input (Max) 22V
Qualification Status Not Qualified
Number of Outputs 1
Current - Supply (Max) 800μA
JESD-30 Code R-PSSO-G2
Pin Count 4
Base Part Number BA78M
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form GULL WING
Terminal Position SINGLE
Technology BIPOLAR
Max Power Dissipation 10W
Packing Method TAPE AND REEL
Subcategory Other Regulators
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Last Time Buy
Pbfree Code yes
Published 2007
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C
Physical
Number of Pins 3
Package / Case TO-252-3, DPak (2 Leads + Tab), SC-63
Mounting Type Surface Mount
Mount Surface Mount
Contact Plating Copper, Tin
Supply Chain
Factory Lead Time 10 Weeks
Alternative Model
