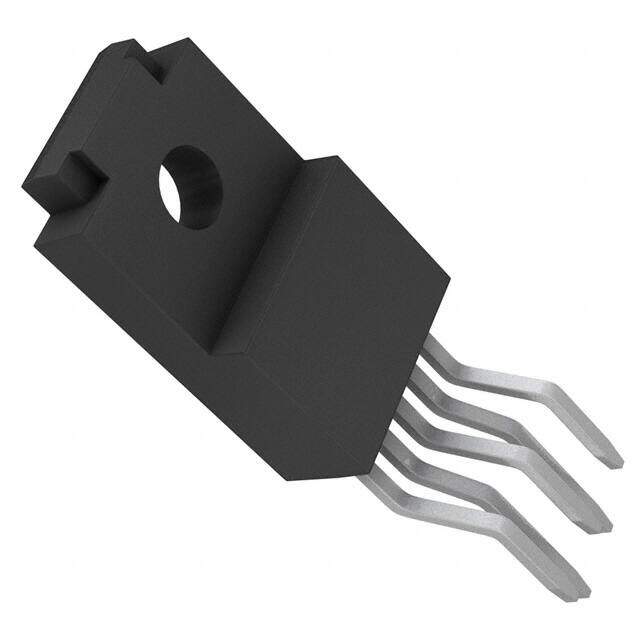

BA033CC0WT-V5
RoHS
RoHS compliant
RoHS compliantPackage TO-220-5
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description
BA033 Bulk Through Hole Over Current Over Temperature Over Voltage voltage regulator linear 300mV 1A 2W -40C~125C
PDF
/
Buying Options
Total Price: USD $1.82
Unit Price: USD $1.8216
≥1 USD $1.8216
≥10 USD $1.63592
≥100 USD $1.543168
≥500 USD $1.314896
≥1000 USD $1.234605
≥3000 USD $1.0868
Inventory: 431
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case TO-220-5
Technical
Operating Temperature -40°C~125°C
Packaging Bulk
Published 2018
JESD-609 Code e2
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 5
ECCN Code EAR99
Terminal Finish Tin/Copper (Sn/Cu)
Subcategory Other Regulators
Max Power Dissipation 2W
Technology BIPOLAR
Terminal Position SINGLE
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Time@Peak Reflow Temperature-Max (s) 10
Base Part Number BA033
Pin Count 3
JESD-30 Code R-XSFM-T5
Current - Supply (Max) 5mA
Number of Outputs 1
Qualification Status Not Qualified
Voltage - Input (Max) 25V
Output Voltage 3.3V
Output Type Fixed
Max Output Current 1A
Output Configuration Positive
Control Features Enable
Accuracy 2 %
Output Voltage 1 3.3V
Number of Regulators 1
Min Input Voltage 4V
Protection Features Over Current, Over Temperature, Over Voltage
Current - Quiescent (Iq) 2.5mA
PSRR 55dB (120Hz)
Dropout Voltage 300mV
Dropout Voltage1-Nom 0.3V
Voltage Tolerance-Max 2%
Input Voltage Absolute-Max 35V
Compliance
RoHS Status ROHS3 Compliant
