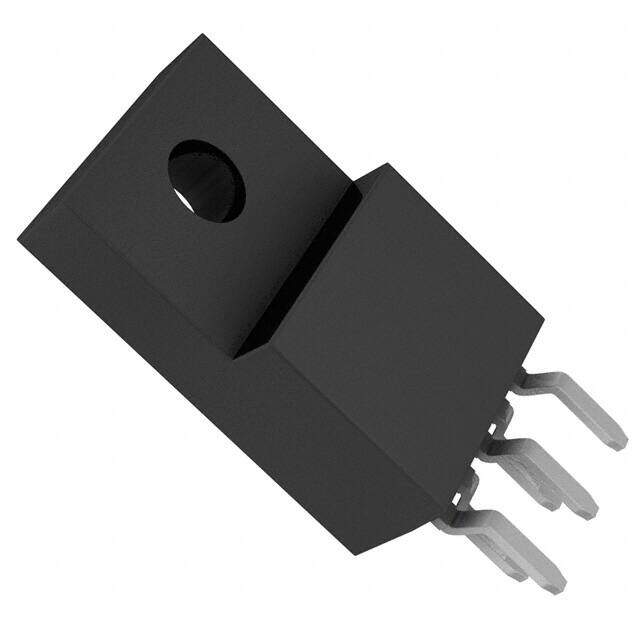

BA00BC0WCP-V5E2 image
Favorite
BA00BC0WCP-V5E2 image
Favorite

BA00BC0WCP-V5E2

ROHM Semiconductor
RoHS
RoHS RoHS compliant
Package TO-220-5 Full Pack (Formed Leads)
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description BA00 Tape & Reel (TR) Through Hole Over Current Over Temperature voltage regulator linear 300mV 1A 2W -40C~105C
PDF
/
Buying Options
Total Price: USD $2.41
Unit Price: USD $2.4112
≥1 USD $2.4112
≥10 USD $2.1692
≥100 USD $2.046528
≥500 USD $1.743544
≥1000 USD $1.637152
Inventory: 42
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 6 Weeks

Physical

Mount Through Hole
Mounting Type Through Hole
Package / Case TO-220-5 Full Pack (Formed Leads)
Number of Pins 5

Technical

Operating Temperature -40°C~105°C
Packaging Tape & Reel (TR)
Published 2012
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 5
ECCN Code EAR99
Subcategory Other Regulators
Packing Method TR
Max Power Dissipation 2W
Technology BIPOLAR
Terminal Position ZIG-ZAG
Number of Functions 1
Base Part Number BA00
Current - Supply (Max) 900μA
Number of Outputs 1
Voltage - Input (Max) 16V
Output Voltage 12V
Output Type Adjustable
Max Output Current 1A
Output Configuration Positive
Control Features Enable
Accuracy 2 %
Voltage - Output (Min/Fixed) 1.5V
Number of Regulators 1
Protection Features Over Current, Over Temperature
Current - Quiescent (Iq) 0.5mA
PSRR 55dB (120Hz)
Reference Voltage 1.275V
Dropout Voltage 300mV
Dropout Voltage1-Nom 0.3V
Load Regulation-Max(%) 6%

Compliance

Radiation Hardening No
RoHS Status ROHS3 Compliant
