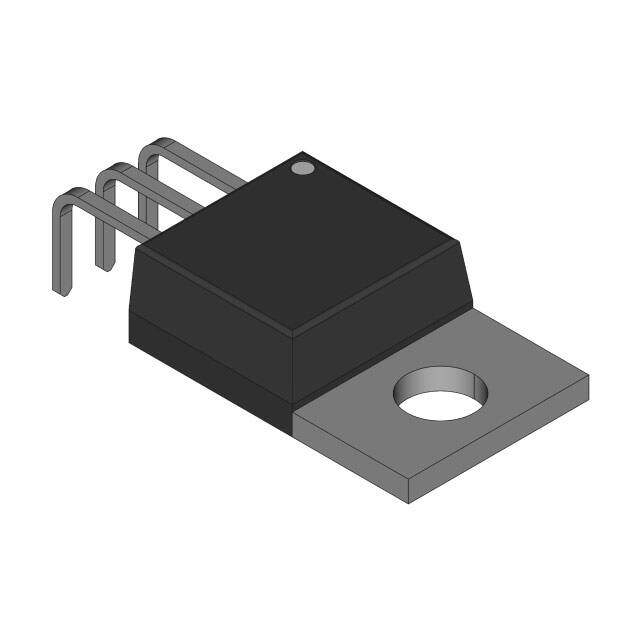

SPX29150U-L-3-3
RoHS
RoHS compliant
RoHS compliantPackage TO-220-3
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description
TO-220-3 Surface Mount Current Limit Thermal Limit RoHS Compliant voltage regulator linear 0.6V 500mA -40C~125C
PDF
/
Buying Options
Total Price: USD $0.45
Unit Price: USD $0.4488
≥1 USD $0.4488
Inventory: 42752
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Technical
Dropout Voltage1-Max 0.6V
Voltage - Output (Max) 3.37V
Output Voltage1-Min 3.234V
Protection Features Current Limit, Thermal Limit
Number of Regulators 1
Voltage - Output (Min/Fixed) 3.23V
Input Voltage (Min) 4.3V
Output Voltage 1 3.3V
Control Features Current Limit
Current - Output 500mA
Output Configuration Positive
Output Type Fixed
Voltage - Input (Max) 16V
Current - Supply (Max) 1.5A
JESD-30 Code R-PSFM-T3
Pin Count 3
Time@Peak Reflow Temperature-Max (s) 40
Number of Functions 1
Peak Reflow Temperature (Cel) 245
Terminal Form THROUGH-HOLE
Terminal Position SINGLE
Terminal Finish TIN
Number of Terminations 3
Moisture Sensitivity Level (MSL) NOT APPLICABLE
Part Status Obsolete
Pbfree Code no
JESD-609 Code e3
Series SPX2915
Operating Temperature -40°C~125°C
Physical
Surface Mount NO
Package / Case TO-220-3
Mounting Type Surface Mount
