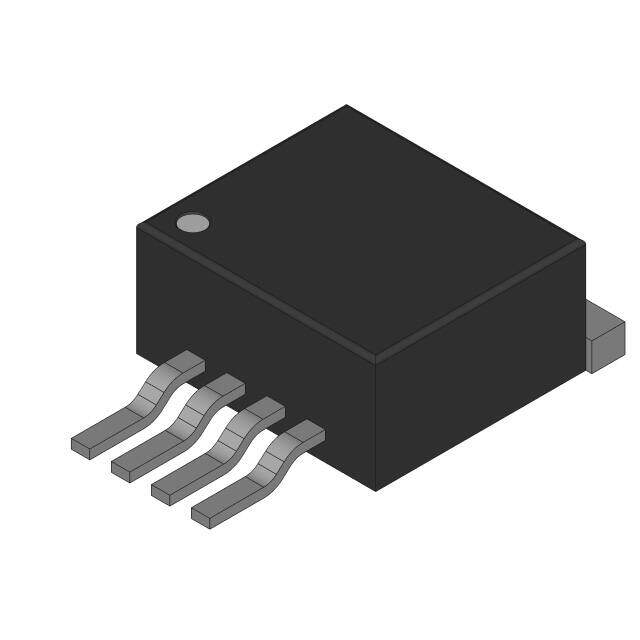

SPX1581T5-L-2-5
RoHS
RoHS compliant
RoHS compliantPackage TO-263-6, D2Pak (5 Leads + Tab), TO-263BA
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description
TO-263-6D2Pak (5Leads + Tab) TO-263BA Surface Mount Current Limit Over Temperature Reverse Current Transient Voltage RoHS Compliant voltage regulator linear 0.5V 5.08mm 5mA 0C~125C
PDF
/
Buying Options
Total Price: USD $0.26
Unit Price: USD $0.2552
≥1 USD $0.2552
Inventory: 1135
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Height Seated (Max) 5.08mm
Technical
Dropout Voltage1-Max 0.5V
Voltage - Output (Max) 2.6V
Output Voltage1-Min 2.4V
Protection Features Current Limit, Over Temperature, Reverse Current, Transient Voltage
Number of Regulators 1
Voltage - Output (Min/Fixed) 2.4V
Output Voltage 1 2.5V
Control Features Current Limit
Current - Output 5mA
Output Configuration Positive
Output Type Fixed
Voltage - Input (Max) 5.5V
Qualification Status COMMERCIAL
Current - Supply (Max) 5A
JESD-30 Code R-PSSO-G5
Pin Count 4
Number of Functions 1
Terminal Form GULL WING
Terminal Position SINGLE
Number of Terminations 5
Part Status Obsolete
Series SPX1581
Operating Temperature 0°C~125°C
Physical
Surface Mount YES
Package / Case TO-263-6, D2Pak (5 Leads + Tab), TO-263BA
Mounting Type Surface Mount
