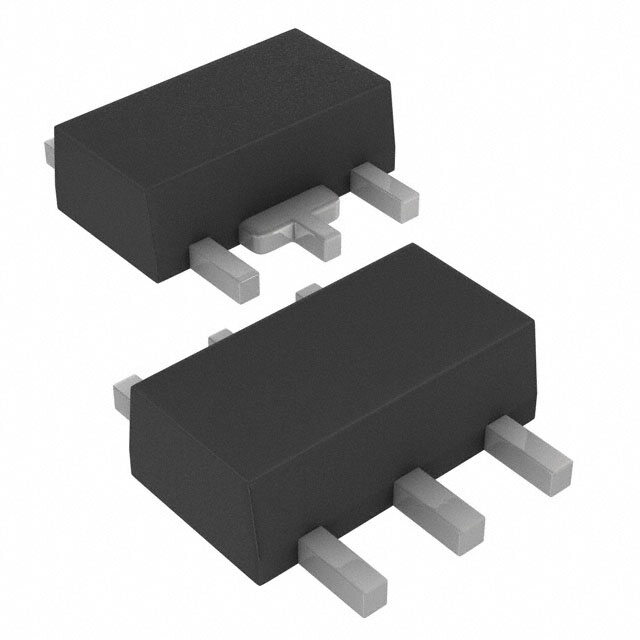

RT9069-C0GX5 image
Favorite
RT9069-C0GX5 image
Favorite

RT9069-C0GX5

Richtek USA Inc.
RoHS
RoHS RoHS compliant
Package SOT-89-5/6
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description Tape & Reel (TR) Surface Mount Over Current Over Temperature ROHS3Compliant voltage regulator linear 200mV 0.6mm 3.5muA -40C~85C TA
PDF
/
Inventory: 2295
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 16 Weeks

Physical

Mount Surface Mount
Mounting Type Surface Mount
Package / Case SOT-89-5/6

Technical

Operating Temperature -40°C~85°C TA
Packaging Tape & Reel (TR)
Published 2015
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 6
Terminal Position DUAL
Terminal Form NO LEAD
Number of Functions 1
Terminal Pitch 0.5mm
JESD-30 Code S-PDSO-N6
Current - Supply (Max) 5μA
Voltage - Input (Max) 36V
Output Voltage 12V
Output Type Fixed
Output Configuration Positive
Control Features Enable
Output Voltage 1 12V
Voltage - Output (Min/Fixed) 12V
Number of Regulators 1
Protection Features Over Current, Over Temperature
Current - Quiescent (Iq) 3.5μA
Voltage Dropout (Max) 0.36V @ 10mA
Dropout Voltage 200mV
Output Current1-Max 0.2A
Min Current Limit 200mA

Dimensions

Height Seated (Max) 0.6mm

Compliance

RoHS Status ROHS3 Compliant
