ISL80505IRAJZ
RoHS
RoHS compliant

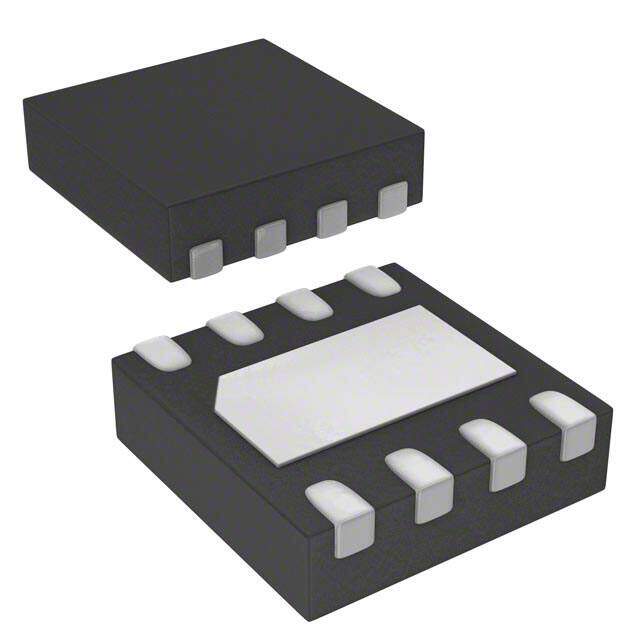

RoHS compliantPackage 8-VDFN Exposed Pad
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description
Tube Surface Mount Over Current Over Temperature ROHS3Compliant voltage regulator linear 6V 500mA -40C~125C
PDF
/
Buying Options
Total Price: USD $1.06
Unit Price: USD $1.056
≥1 USD $1.056
≥10 USD $0.94424
≥100 USD $0.89584
≥500 USD $0.7359
≥1000 USD $0.687931
≥3000 USD $0.607939
Inventory: 1117
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Mounting Type Surface Mount
Package / Case 8-VDFN Exposed Pad
Technical
Operating Temperature -40°C~125°C
Packaging Tube
JESD-609 Code e3
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
ECCN Code EAR99
Terminal Finish MATTE TIN
Peak Reflow Temperature (Cel) NOT SPECIFIED
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Pin Count 8
Current - Supply (Max) 5.7mA
Voltage - Input (Max) 6V
Output Type Adjustable
Output Configuration Positive
Current - Output 500mA
Control Features Enable, Soft Start
Voltage - Output (Min/Fixed) 0.8V
Number of Regulators 1
Protection Features Over Current, Over Temperature
Current - Quiescent (Iq) 4.6mA
Voltage Dropout (Max) 0.09V @ 500mA
PSRR 60dB ~ 57dB (120Hz ~ 1kHz)
Voltage - Output (Max) 5.5V
Compliance
RoHS Status ROHS3 Compliant
Alternative Model
