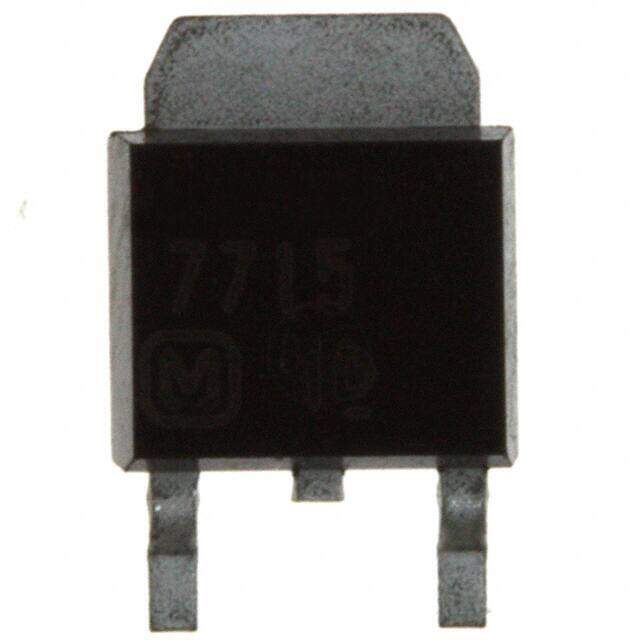

AN7715SP-E1 image
Favorite
AN7715SP-E1 image
Favorite
RoHS
/
Package TO-252-3, DPak (2 Leads + Tab), SC-63
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description IC REG LINEAR 15V 1.2A SP3SUA
PDF
/
Inventory: 4379
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Lead Free
RoHS Status RoHS Compliant

Technical

Min Current Limit 1.2A
PSRR 60dB (120Hz)
Current - Quiescent (Iq) 5mA
Protection Features Over Current, Over Temperature, Short Circuit
Number of Regulators 1
Voltage - Output (Min/Fixed) 15V
Current - Output 1.2A
Output Configuration Positive
Output Type Fixed
Output Voltage 15V
Voltage - Input (Max) 26.5V
Base Part Number AN7715
Min Operating Temperature 25°C
Max Operating Temperature 125°C
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Published 2001
Packaging Tape & Reel (TR)
Operating Temperature 25°C~125°C

Physical

Supplier Device Package SP-3SUA
Package / Case TO-252-3, DPak (2 Leads + Tab), SC-63
Mounting Type Surface Mount
Mount Surface Mount
