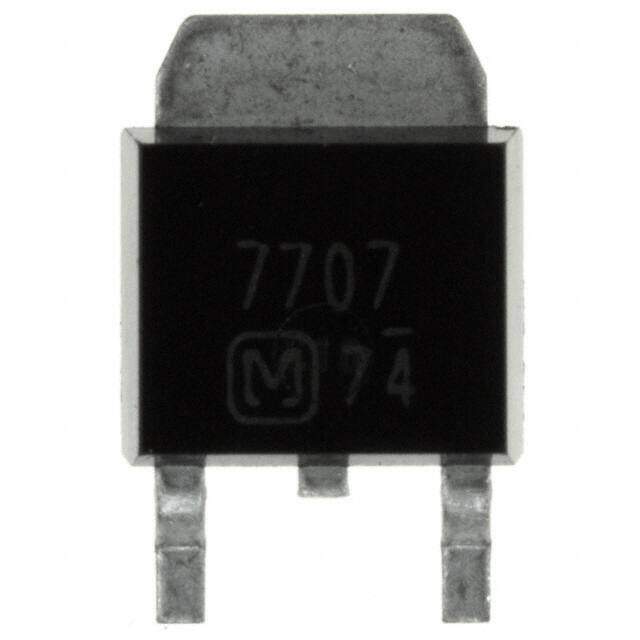

AN7707SP
RoHS
/
Package TO-252-3, DPak (2 Leads + Tab), SC-63
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description
AN7707 Bulk Surface Mount Over Current Over Temperature Short Circuit voltage regulator linear 1V 6.5mm 5mA 25C~125C
PDF
/
Inventory: 4089
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case TO-252-3, DPak (2 Leads + Tab), SC-63
Technical
Operating Temperature 25°C~125°C
Packaging Bulk
Published 2006
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Subcategory Other Regulators
Technology BIPOLAR
Terminal Position SINGLE
Terminal Form GULL WING
Number of Functions 1
Terminal Pitch 2.3mm
Reach Compliance Code unknown
Base Part Number AN7707
JESD-30 Code R-PSSO-G2
Number of Outputs 1
Qualification Status Not Qualified
Voltage - Input (Max) 18V
Output Voltage 7V
Output Type Fixed
Output Configuration Positive
Output Voltage 1 7V
Input Voltage (Min) 8V
Voltage - Output (Min/Fixed) 7V
Number of Regulators 1
Protection Features Over Current, Over Temperature, Short Circuit
Current - Quiescent (Iq) 5mA
PSRR 67dB (120Hz)
Dropout Voltage1-Nom 1V
Voltage Tolerance-Max 3%
Dropout Voltage1-Max 1V
Min Current Limit 1.2A
Input Voltage Absolute-Max 30V
Dimensions
Height Seated (Max) 2.6mm
Length 6.5mm
Width 5.5mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
Alternative Model
