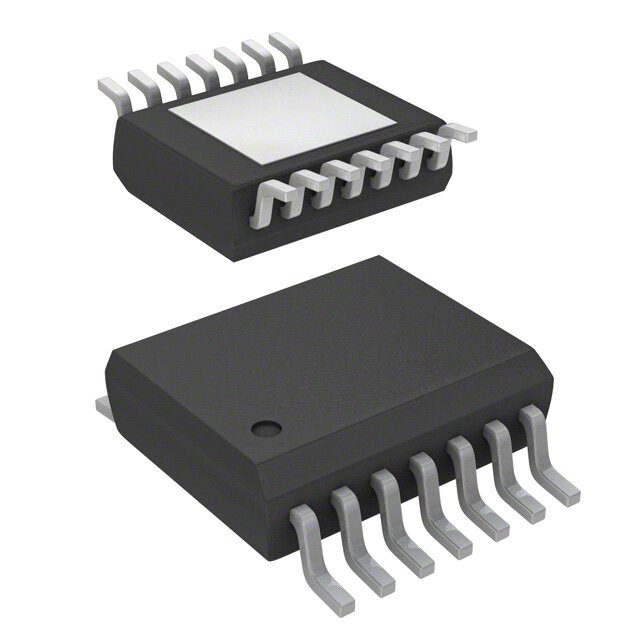

NCV4299APA50R2G image
Favorite
NCV4299APA50R2G image
Favorite

NCV4299APA50R2G

ON Semiconductor
RoHS
RoHS RoHS compliant
Package 14-TSSOP (0.173, 4.40mm Width) Exposed Pad
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description Tape & Reel (TR) Surface Mount Antisaturation Over Temperature Short Circuit ROHS3Compliant voltage regulator linear 220mV 5mm 150mA -40C~150C
PDF
/
Buying Options
Total Price: USD $9.53
Unit Price: USD $9.52565
≥1 USD $9.52565
≥10 USD $7.8166
≥100 USD $7.57245
≥500 USD $7.3283
≥1000 USD $7.0832
Inventory: 1114
Minimum: 1
-
+

Technical Details

Technical

Output Voltage 5V
Output Type Fixed
Max Output Current 150mA
Output Configuration Positive
Quiescent Current 90μA
Control Features Enable, Reset
Accuracy 2 %
Output Voltage 1 5V
Number of Regulators 1
Min Input Voltage 5.5V
Protection Features Antisaturation, Over Temperature, Short Circuit
Current - Quiescent (Iq) 90μA
Voltage Dropout (Max) 0.5V @ 100mA
PSRR 66dB (100Hz)
Dropout Voltage 220mV
Min Current Limit 250mA
Voltage - Input (Max) 45V
Current - Supply (Max) 2mA
Pin Count 14
Terminal Pitch 0.65mm
Number of Functions 1
Terminal Form GULL WING
Terminal Position DUAL
Terminal Finish Tin (Sn)
ECCN Code EAR99
Number of Terminations 14
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Series Automotive, AEC-Q100
Published 2011
Packaging Tape & Reel (TR)
Operating Temperature -40°C~150°C

Dimensions

Length 5mm
Width 4.4mm

Compliance

Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free

Physical

Number of Pins 14
Package / Case 14-TSSOP (0.173, 4.40mm Width) Exposed Pad
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Lifecycle Status ACTIVE (Last Updated: 1 day ago)
Factory Lead Time 5 Weeks
