NCP702MX30TCG
RoHS
RoHS compliant

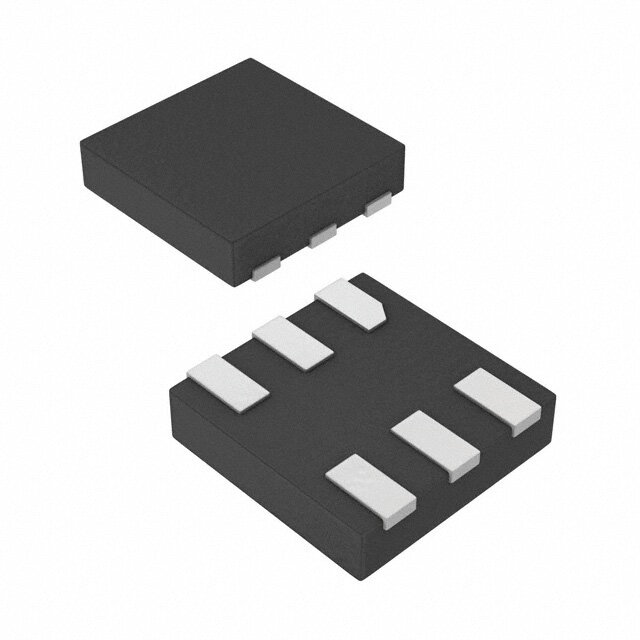

RoHS compliantPackage 6-XFDFN
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description
Tape & Reel (TR) Surface Mount Over Current Over Temperature Soft Start Under Voltage Lockout (UVLO) ROHS3Compliant voltage regulator linear 140mV 400mum 200mA -40C~125C
PDF
/
Buying Options
Total Price: USD $64.66
Unit Price: USD $64.65795
≥1 USD $64.65795
≥10 USD $53.05275
≥100 USD $51.395
≥500 USD $49.7363
≥1000 USD $48.07855
Inventory: 1150
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Width 1.5mm
Length 1.5mm
Height 400μm
Technical
Input Voltage Absolute-Max 6V
Min Current Limit 220mA
Voltage Tolerance-Max 2%
Dropout Voltage1-Nom 0.14V
Dropout Voltage 140mV
Halogen Free Halogen Free
Current - Quiescent (Iq) 16μA
Protection Features Over Current, Over Temperature, Soft Start, Under Voltage Lockout (UVLO)
Min Input Voltage 2V
Number of Regulators 1
Output Voltage 1 3V
Accuracy 2 %
Control Features Enable
Quiescent Current 16μA
Output Configuration Positive
Max Output Current 200mA
Output Type Fixed
Output Voltage 3V
Voltage - Input (Max) 5.5V
Qualification Status Not Qualified
Number of Outputs 1
Pin Count 6
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Terminal Pitch 0.5mm
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form NO LEAD
Terminal Position DUAL
Technology CMOS
Packing Method TAPE AND REEL
Subcategory Other Regulators
Terminal Finish Nickel/Gold/Palladium (Ni/Au/Pd)
ECCN Code EAR99
Number of Terminations 6
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Published 2012
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Physical
Number of Pins 6
Package / Case 6-XFDFN
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 3 days ago)
Factory Lead Time 4 Weeks
